03 - Transformer Rectifier station SOLAR or NETWORK

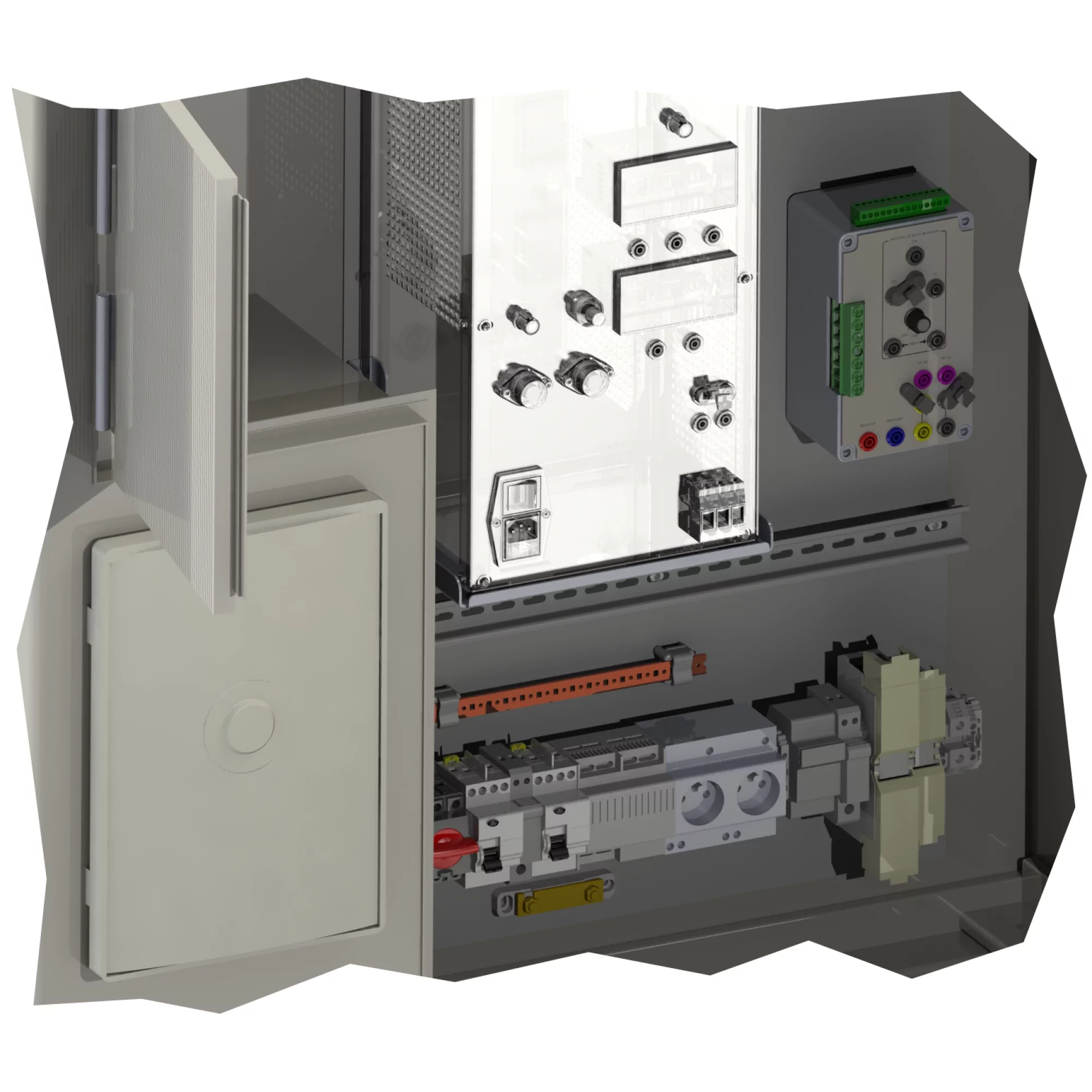

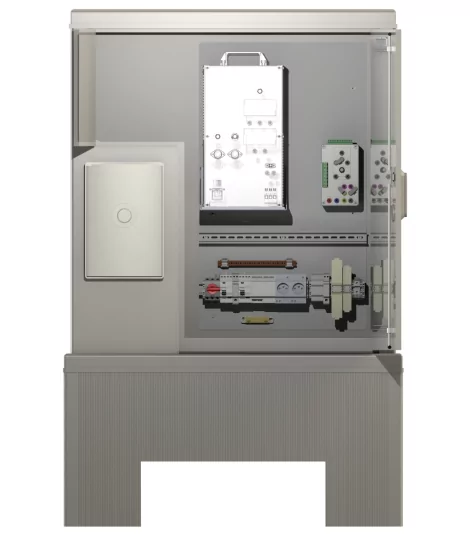

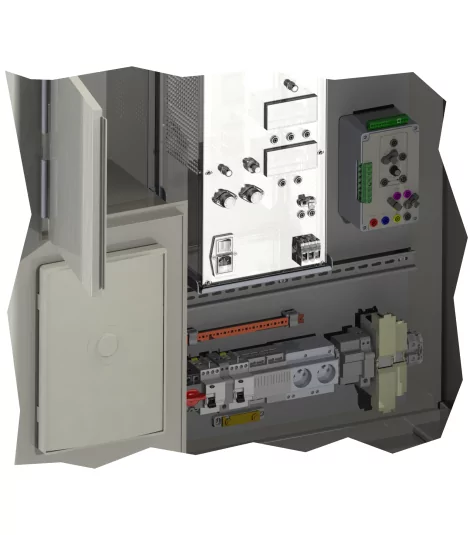

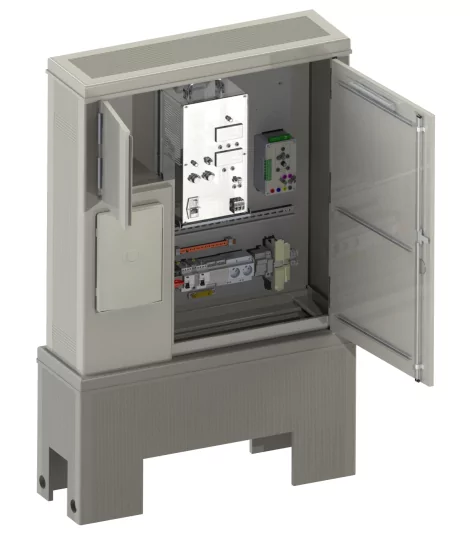

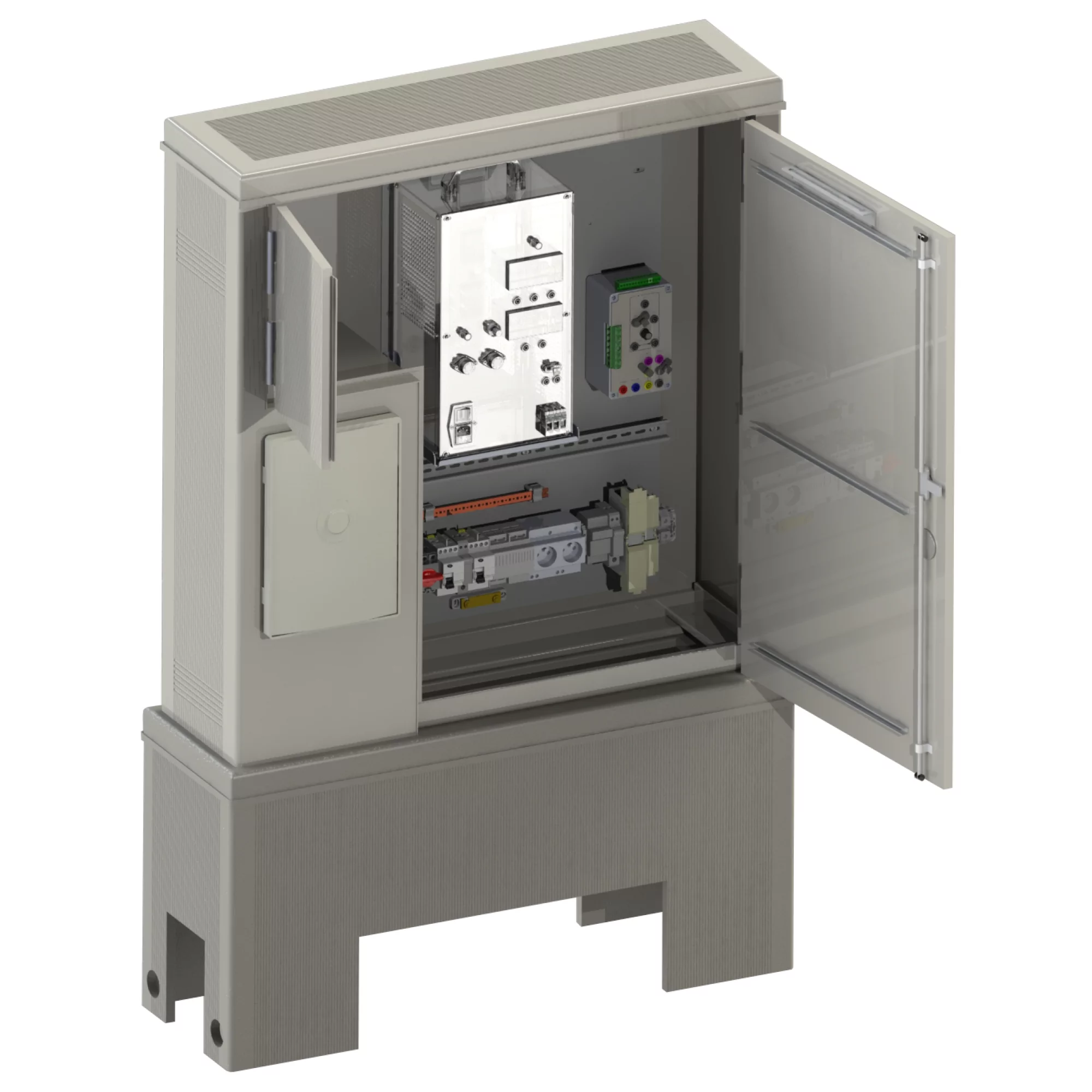

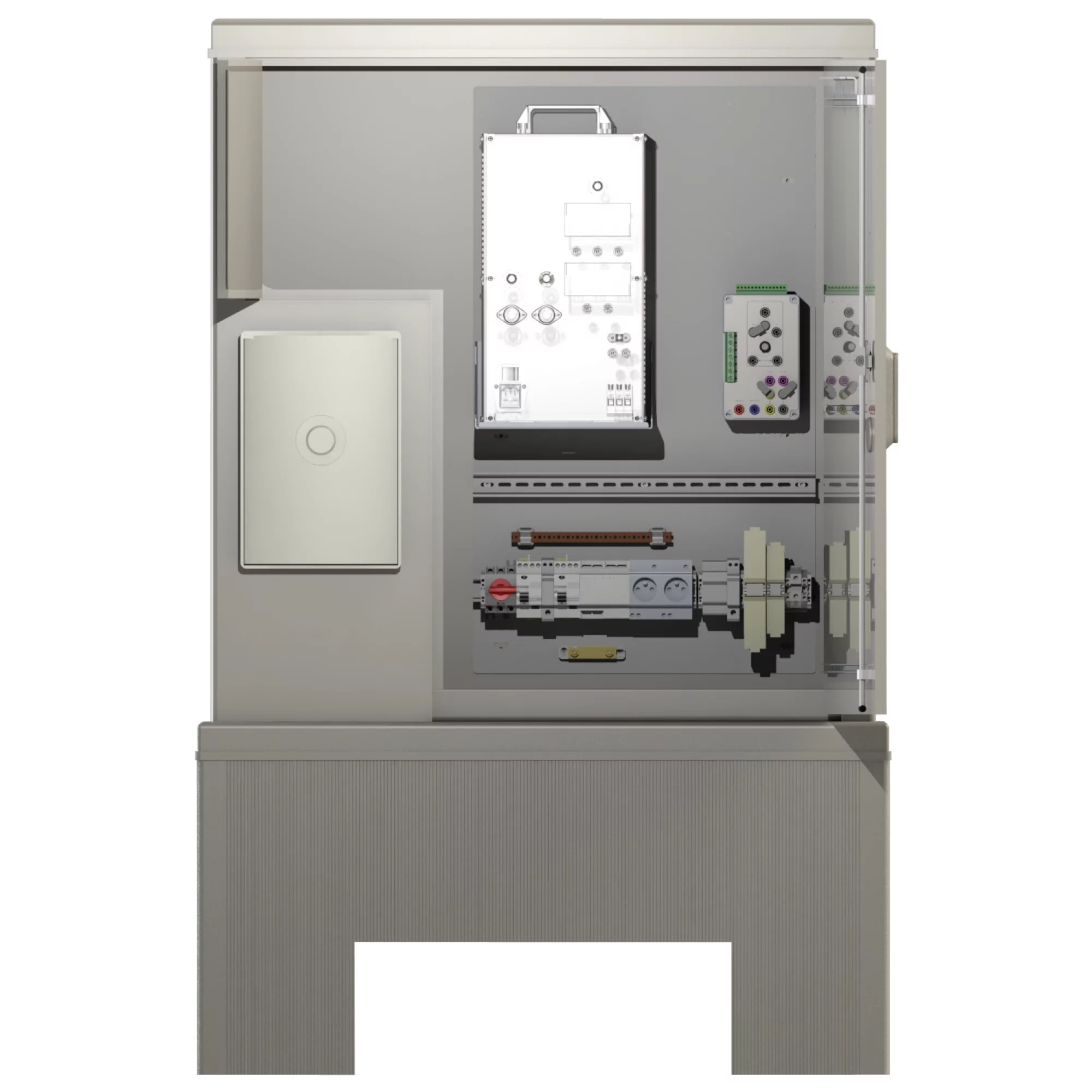

03 - Transformer Rectifier station SOLAR or NETWORK Rectifier station PVC SCMAC with Energy Distribution Box

Subject

The SCMAC rectifier station is designed and equipped with an independent CIBE energy distribution box allowing connection of the 230Vac network. Only the energy distributor will have access to this box.

The rectifier station SCMAC is equipped with a PVC cabinet.

Add to quote

Description

Characteristics of SCMAC PVC transformer rectifier station with CIBE compartment :

Energy distribution box :

  • Supply Voltage: 230Vac-50Hz
  • Sectioning: Fuse
  • Protection: 10A-C magneto-thermal circuit breaker

Station Equipement :

  • Supply voltage : 230Vac-50Hz.
  • Surge arrester network : Un=255V - Imax=40kA - Up=1.5kV.
  • Protection of electrical outlets : 25A-C-30mA.
  • Inrush Current Limiter.
  • Surge arrester at the secondary : Un=100Vdc - Imax=40kA - Up<0.6kV.
  • Measurement box for reading information and connection to telemetry. Version to be specified : MB 100mA/500mA/1A MB 2A/5A/10A MB 1A/10A/20A
  • Target location for telemetry (type to be specified when ordering)
