03 - Transformer Rectifier station SOLAR or NETWORK
03 - Transformer Rectifier station SOLAR or NETWORK Rectifier station 1450 CITY ALU
Subject

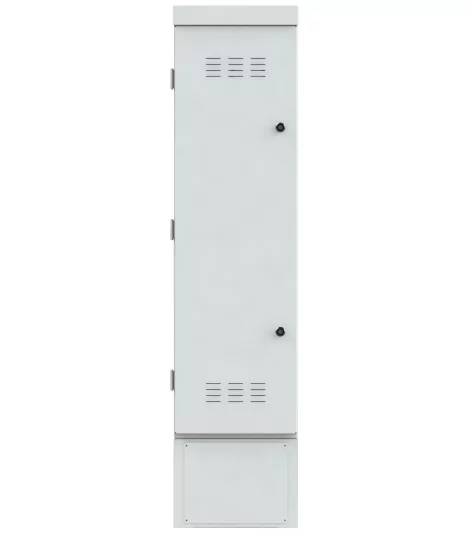

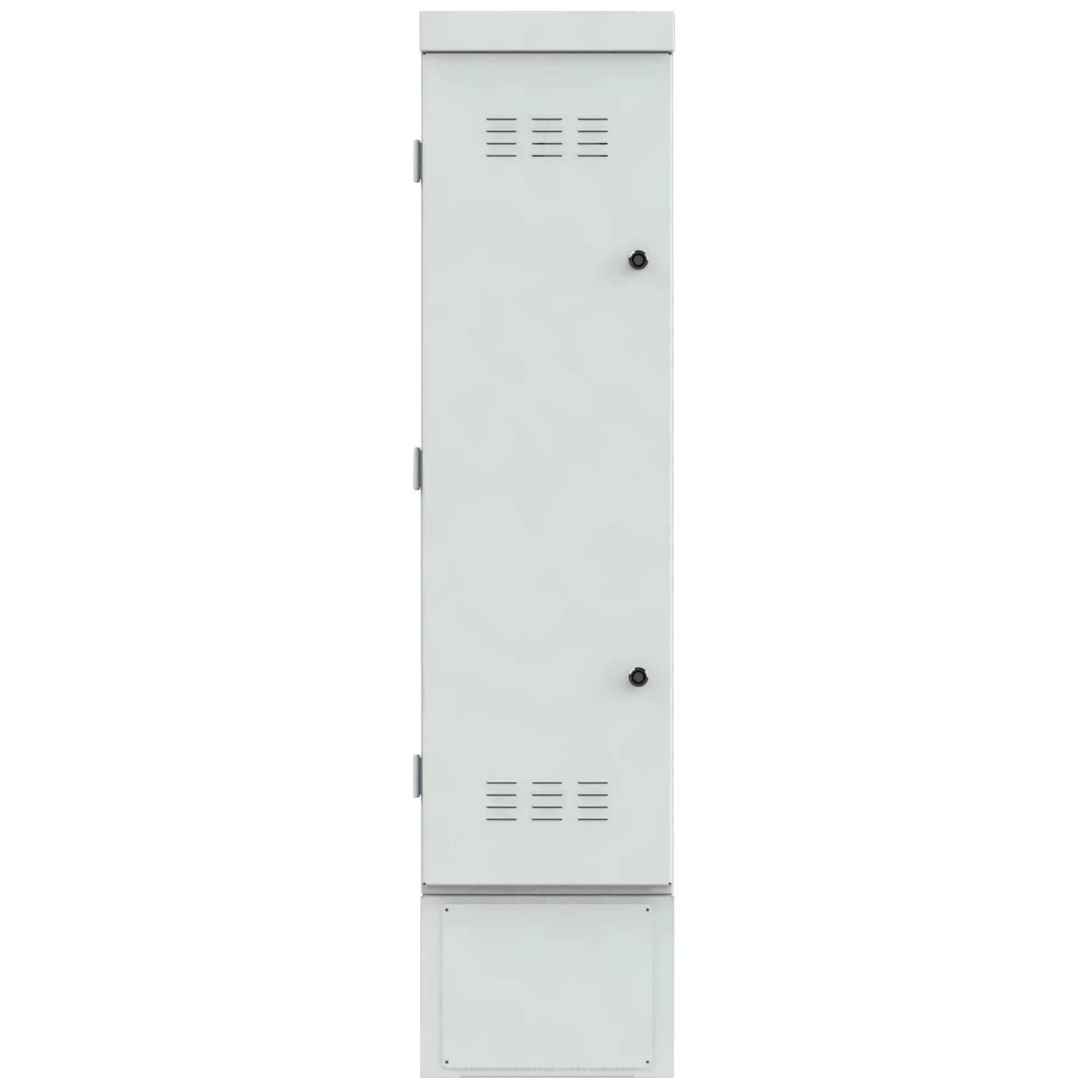

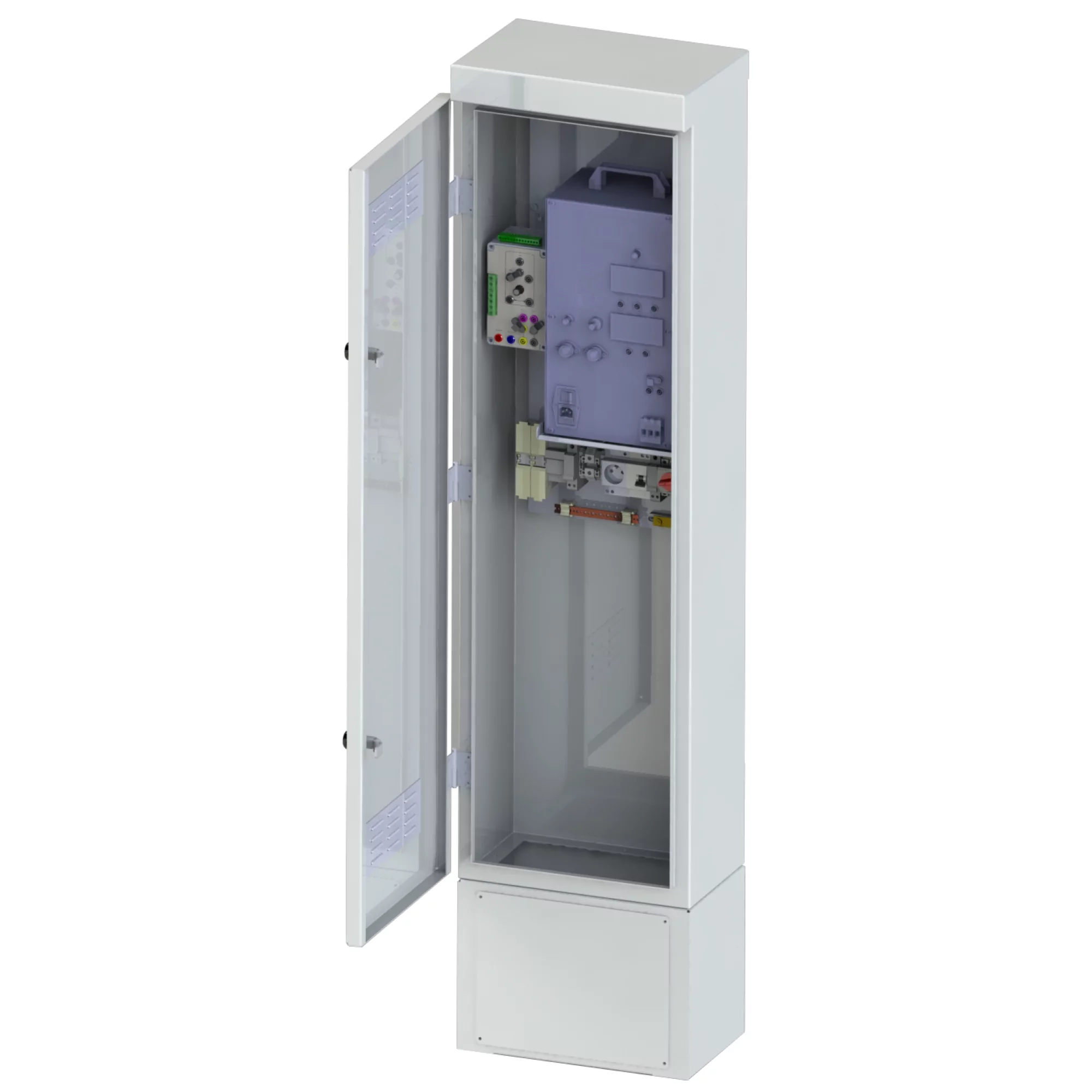

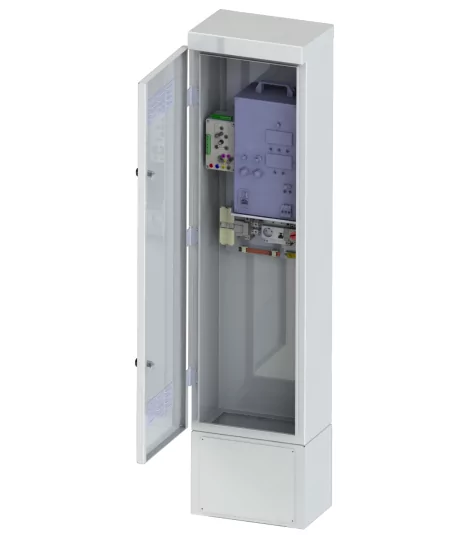

The rectifier station 1450 CITY is installed in an ALUMINUM cabinet. The rectifier station allows the reception of a rectifier and guarantees its protection against overvoltages, overcurrents and the effects of lightning.
The reduced size of this cabinet and the color on demand make it a model perfectly adapted to the urban environment.
By default, the cabinet will be RAL7032 color. For another color please specify at the order.
Add to quote
Description
Technical characteristics of the 1450 CITY ALU transformer rectifier station :
- Supply voltage : 230Vac-50Hz.
- Surge arrester network : Un=255V - Imax=40kA - Up=1.5kV.
- Protection of electrical outlets : 16A-C-30mA.
- Surge arrester at the secondary : Un=100Vdc - Imax=40kA - Up<0.6kV.
- Measurement box for reading information and connection to telemetry.
- Target location for telemetry (type to be specified when ordering).
- Possible option with independent CIBE power supply box.
