03 - Transformer Rectifier station SOLAR or NETWORK

03 - Transformer Rectifier station SOLAR or NETWORK Rectifier station ALU SCMAC with Energy Distribution Box

Subject

The SCMAC rectifier station is designed and equipped with an independent CIBE energy distribution box allowing connection of the 230Vac network. Only the energy distributor will have access to this box.

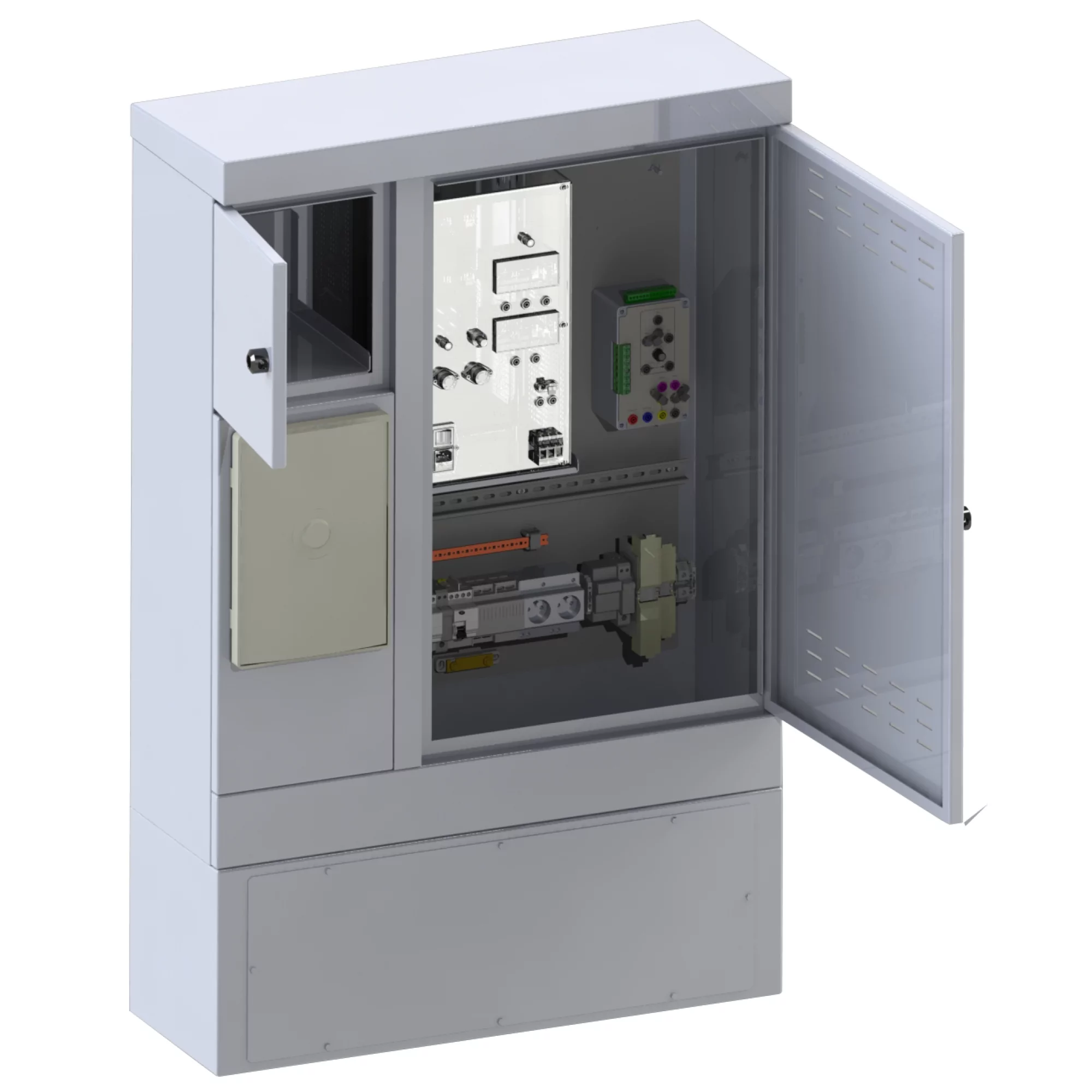

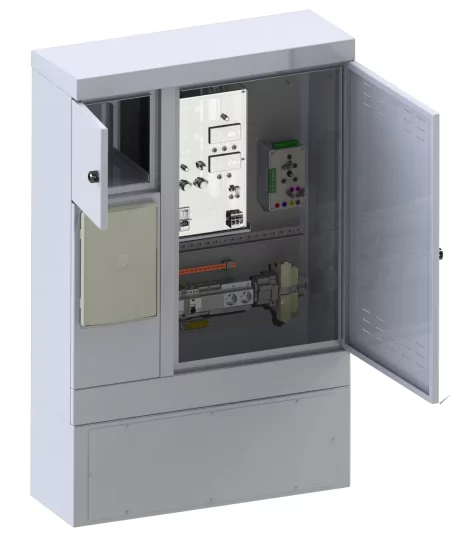

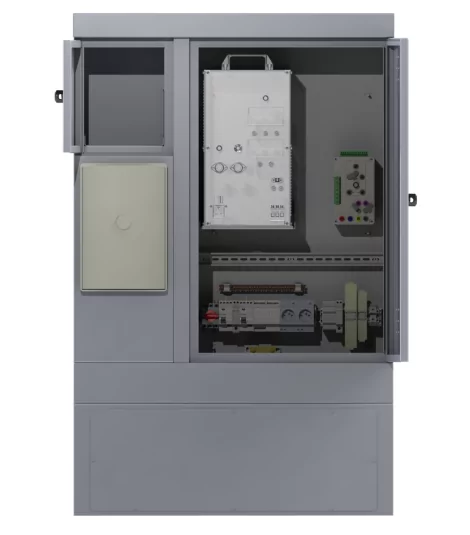

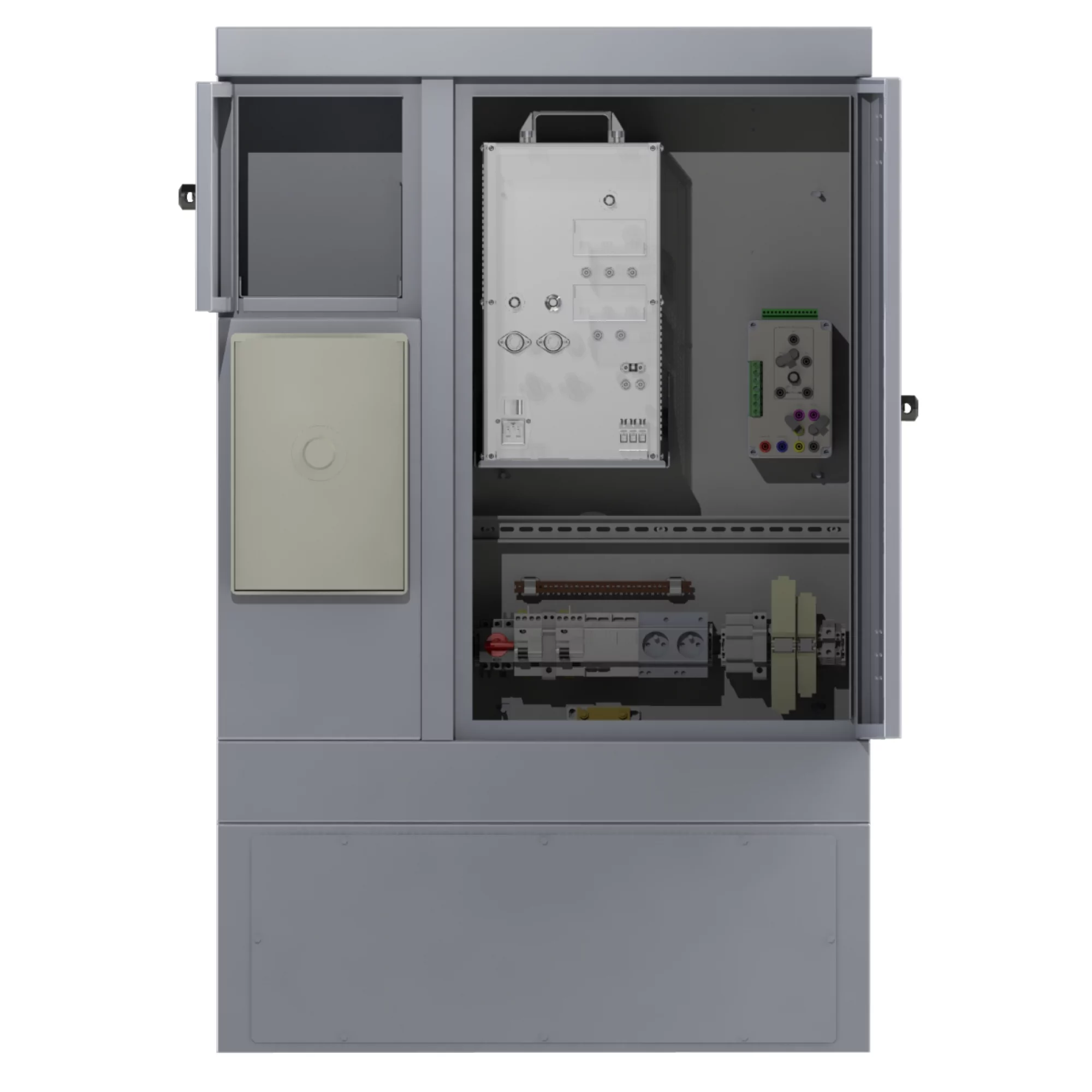

The rectifier station SCMAC is equipped with an aluminum cabinet. By default, the cabinet will be RAL7035 color. For another color please specify at the order.

Option against lightening available for optimum protection. This option is only compatible with aluminum cabinets.

Add to quote

Description

Characteristics

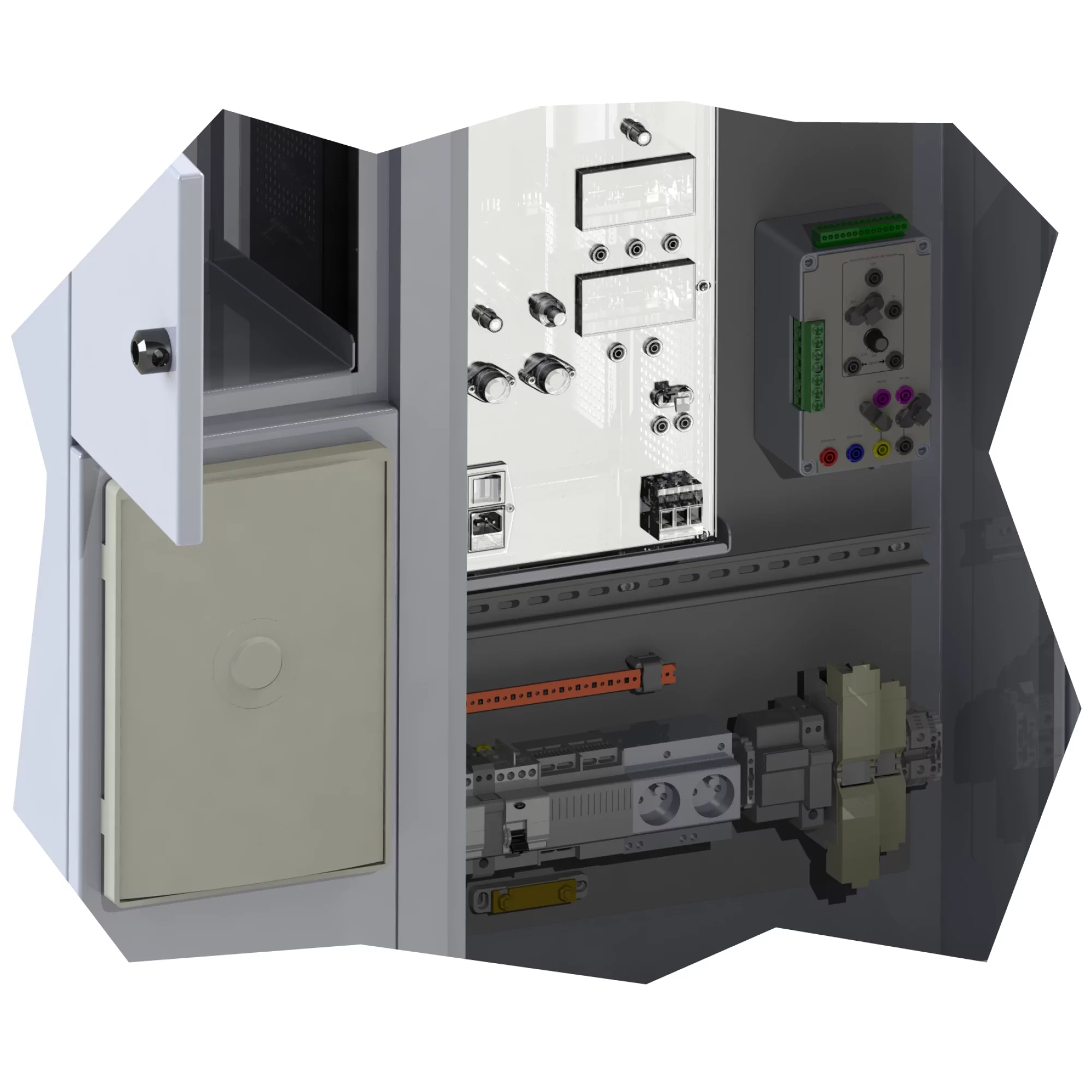

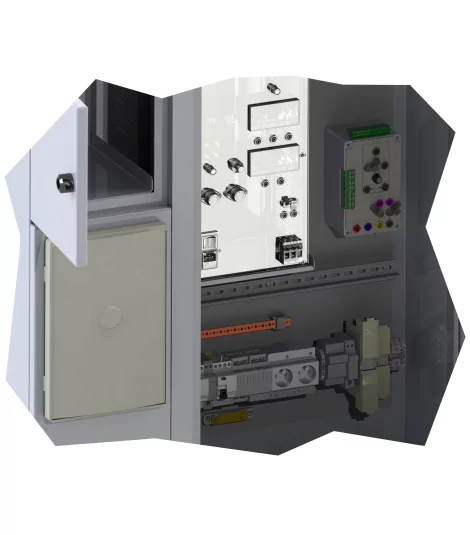

Energy distribution box

  • Supply Voltage: 230Vac-50Hz

  • Sectioning: Fuse

  • Protection: 10A-C magneto-thermal circuit breaker



Station Equipement

  • Supply voltage : 230Vac-50Hz.

  • Surge arrester network : Un=255V - Imax=40kA - Up=1.5kV.

  • Protection of electrical outlets : 25A-C-30mA.

  • Inrush Current Limiter.

  • Surge arrester at the secondary : Un=100Vdc - Imax=40kA - Up<0.6kV.

  • Measurement box for reading information and connection to telemetry. Version to be specified :

     MB 100mA/500mA/1A

     MB 2A/5A/10A

     MB 1A/10A/20A

  • Target location for telemetry (type to be specified when ordering)
