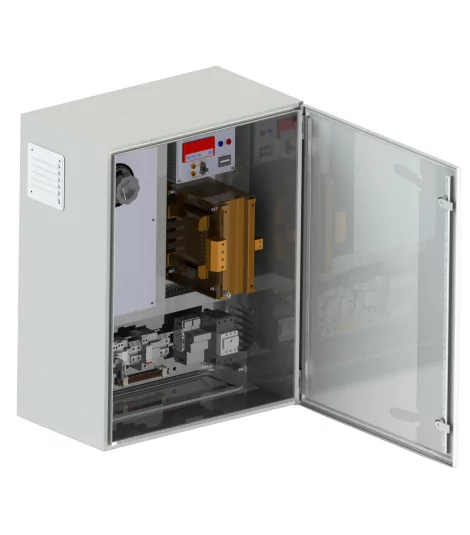

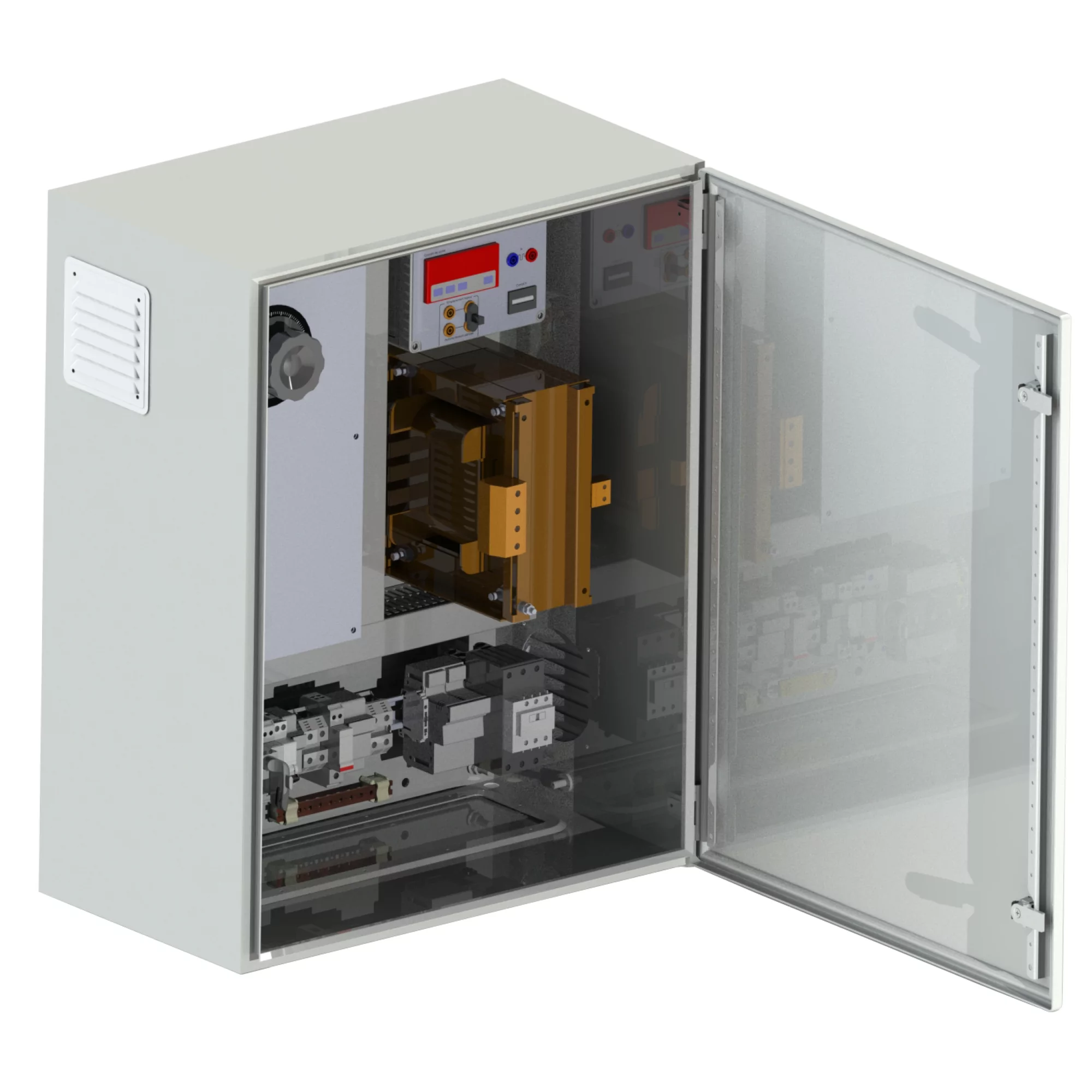

03 - Transformer Rectifier station SOLAR or NETWORK Wall cabinet transformer rectifier

Description

Technical characteristics of the wall cabinet transformer rectifier :

• Power supply voltage: 230 Vac – 50 Hz
• Option: Network surge protector → Un = 255 V – Imax = 40 kA – Up = 1.5 kV
• Power outlet protection: 16A-C-30 mA
• Option: Secondary surge protector → Un = 100 Vdc – Imax = 40 kA – Up < 0.6 kV

Available formats :

• T1 steel: 700 × 500 × 250 mm
• T2 polyester: 800 × 600 × 300 mm
• T3 steel: 500 × 400 × 210 mm → POWER MINI
• T4 steel: 760 × 760 × 300 mm → DOUBLE version

Wall-mounted transformer rectifier stations are available in ALUMINUM or POLYESTER option.

Designed to receive JDECHAUME rectifiers, these cabinets are available in multiple sizes to suit your needs.

Lightning protection options available.
By default, the ALUMINUM cabinet is RAL7032. For another color, please specify when ordering.
