03 - Transformer Rectifier station SOLAR or NETWORK

03 - Transformer Rectifier station SOLAR or NETWORK Rectifier station PVC at size BC400

Subject

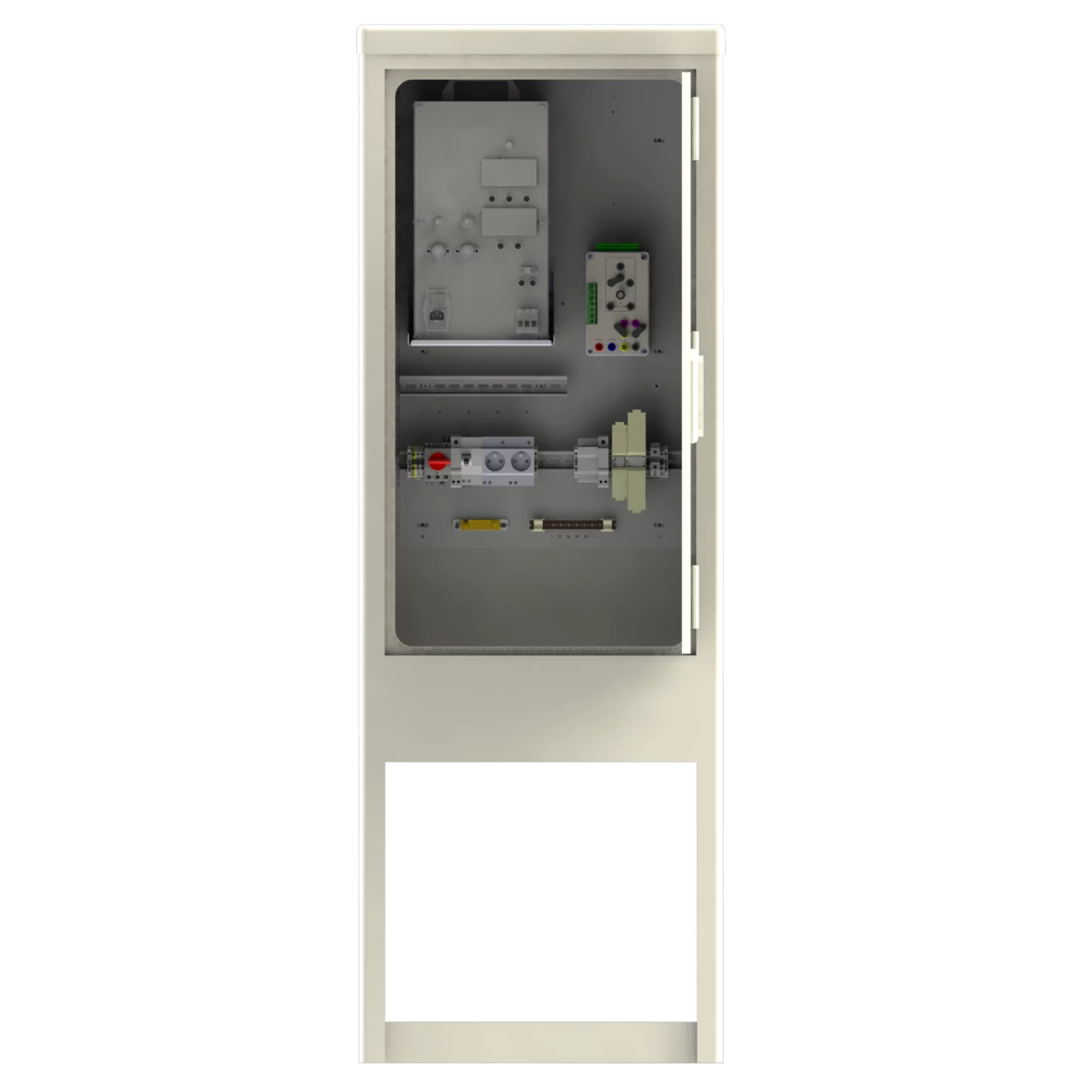

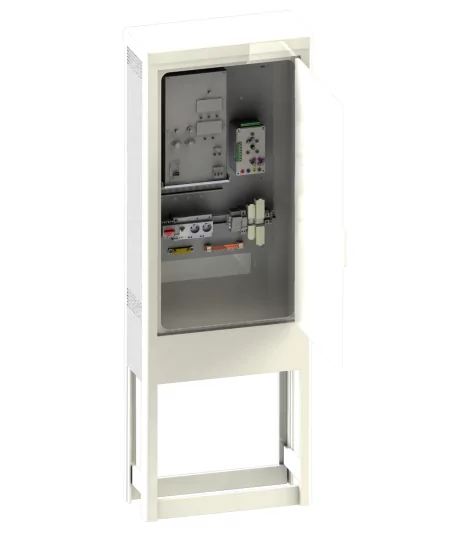

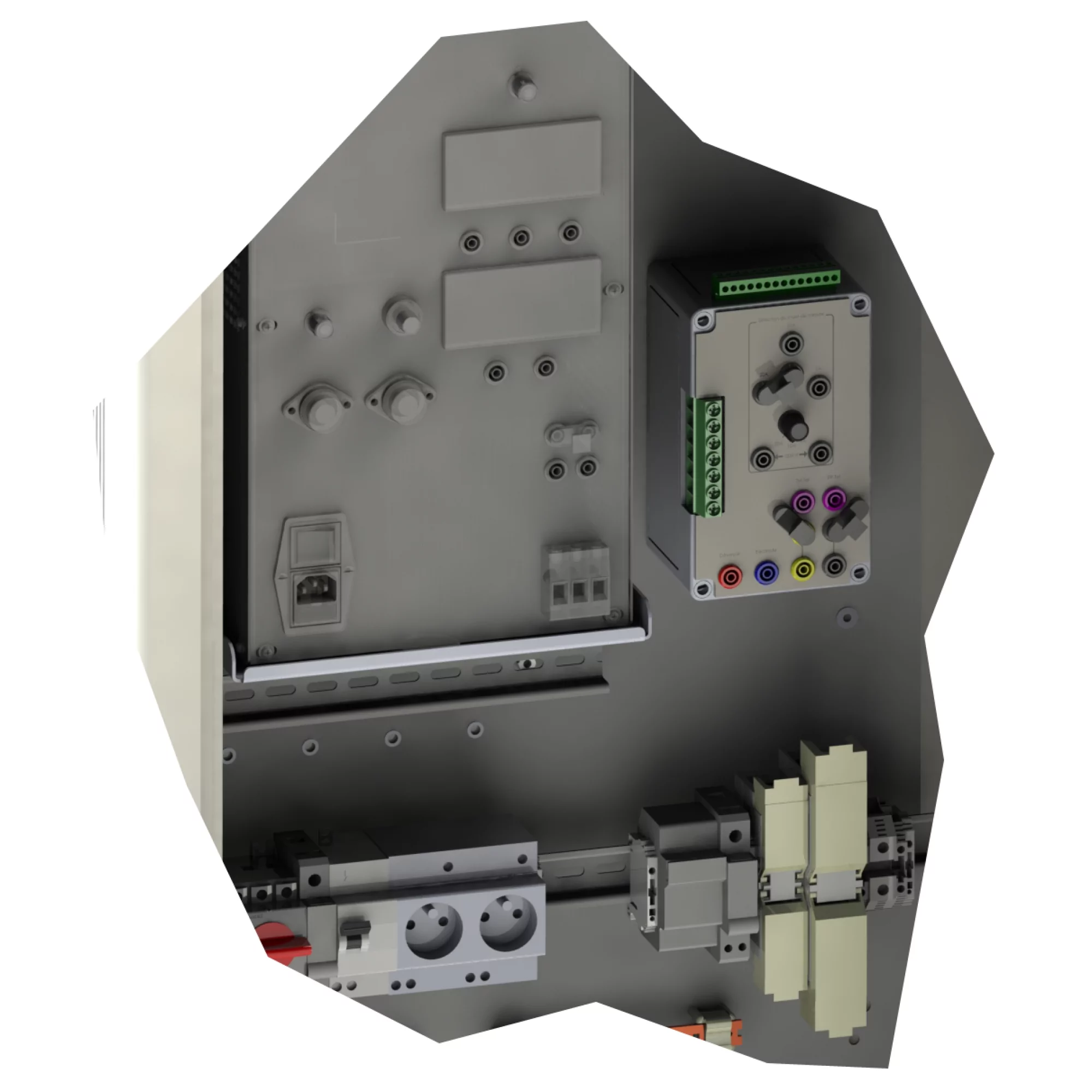

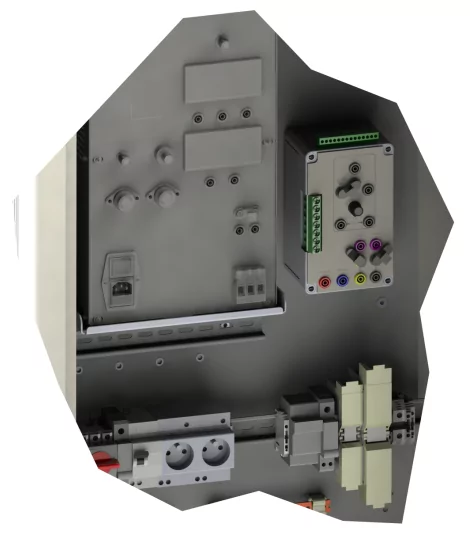

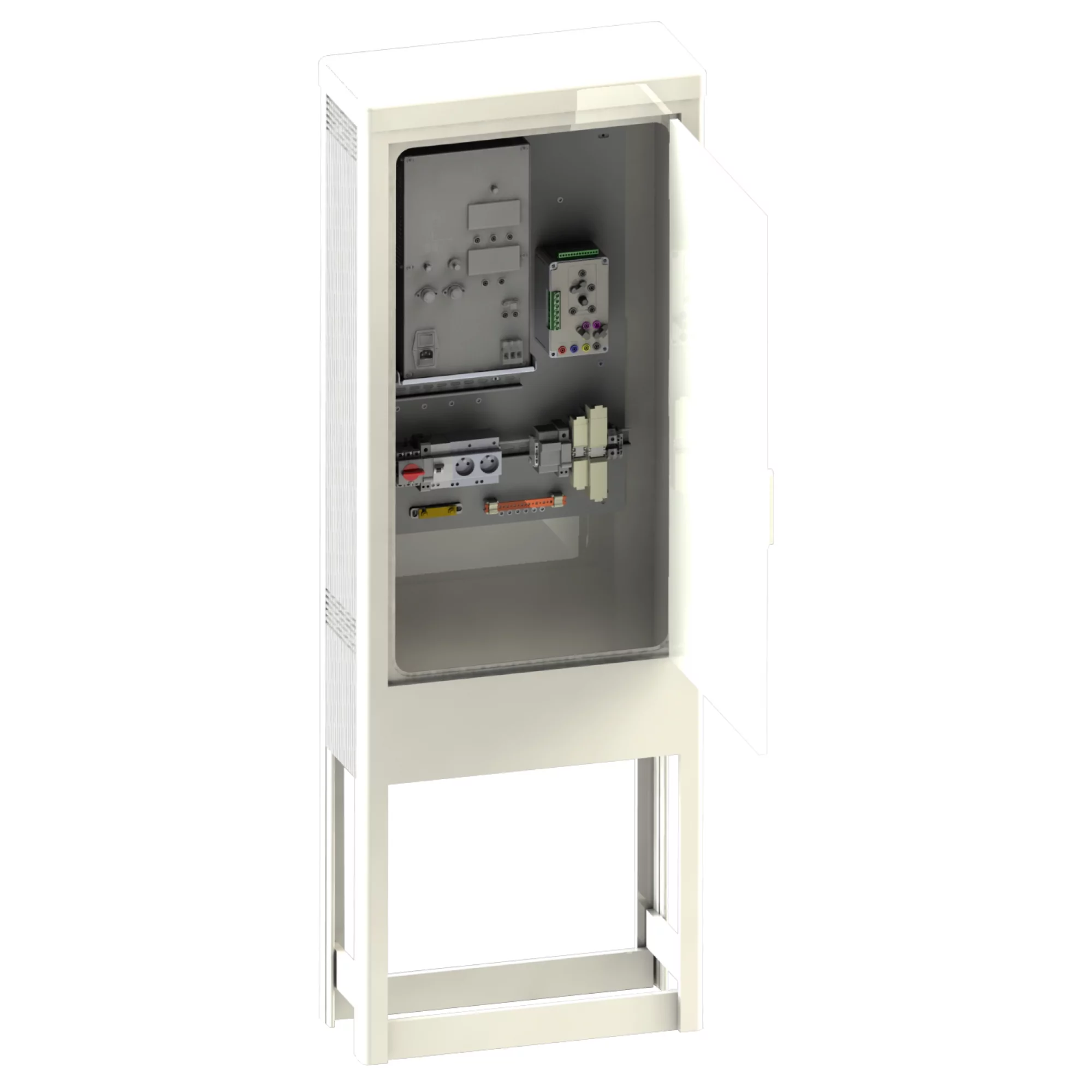

The rectifier station is installed in a PVC cabinet of BC400 format. The rectifier station allows the reception of a rectifier and guarantees its protection against overvoltages, overcurrents and the effects of lightning.

Add to quote

Description

Characteristics of Rectifier station PVC at size BC400 :

  • Supply voltage : 230Vac-50Hz.
  • Surge arrester network : Un=255V - Imax=40kA - Up=1.5kV.
  • Protection of electrical outlets : 16A-C-30mA.
  • Surge arrester at the secondary : Un=100Vdc - Imax=40kA - Up<0.6kV.
  • Measurement box for reading information and connection to telemetry.
  • Target location for telemetry (type to be specified when ordering)
