03 - Transformer Rectifier station SOLAR or NETWORK
03 - Transformer Rectifier station SOLAR or NETWORK Rectifier station X3 at size BC400 ALU
Subject

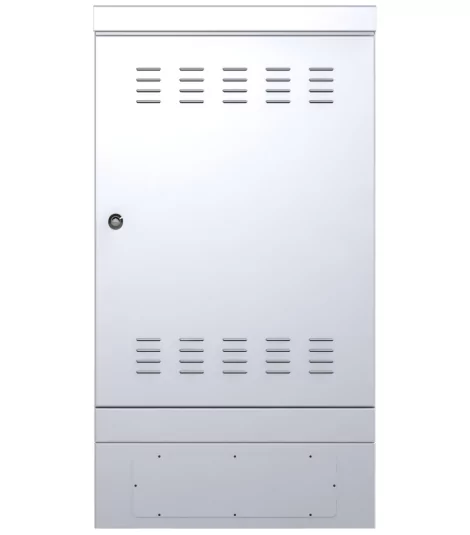

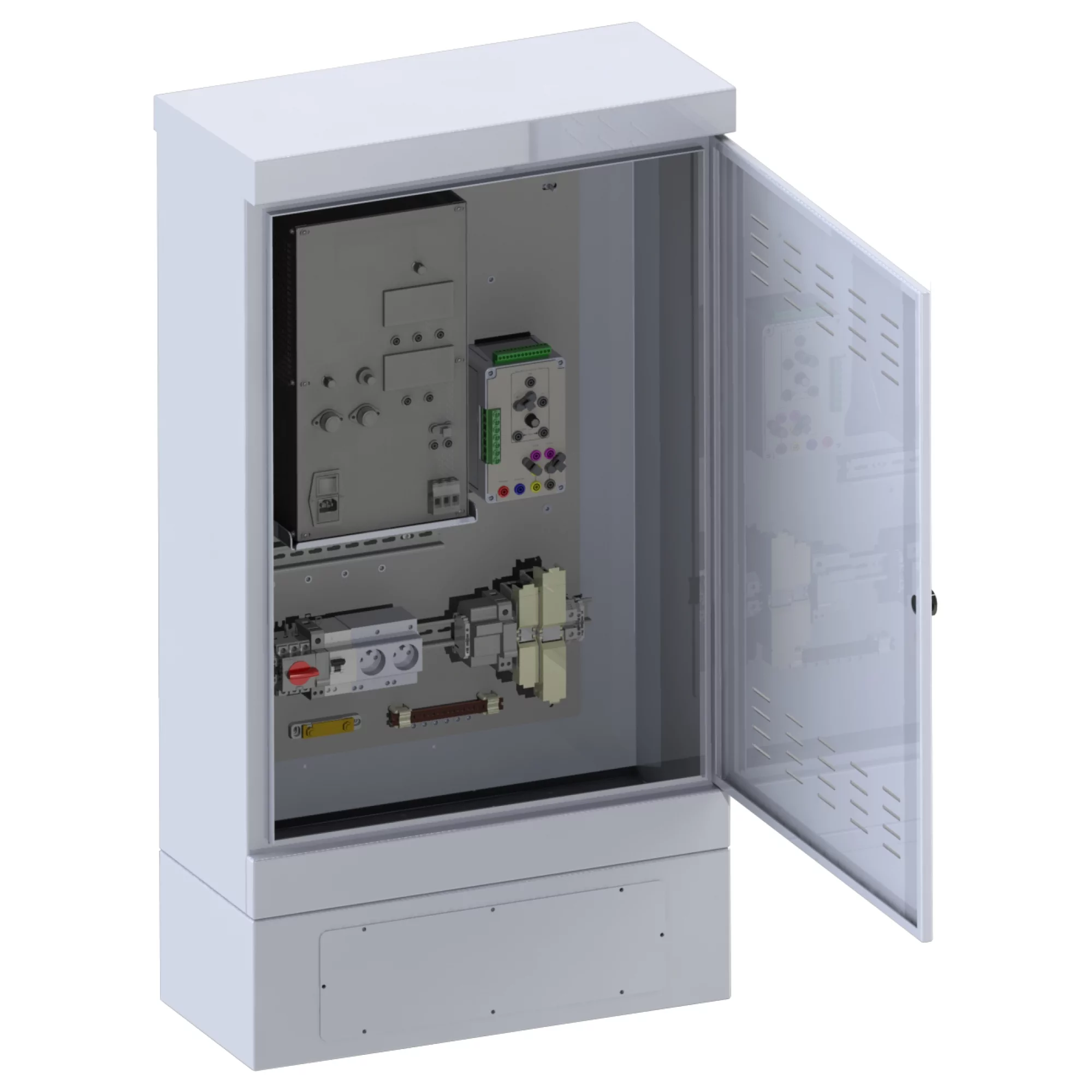

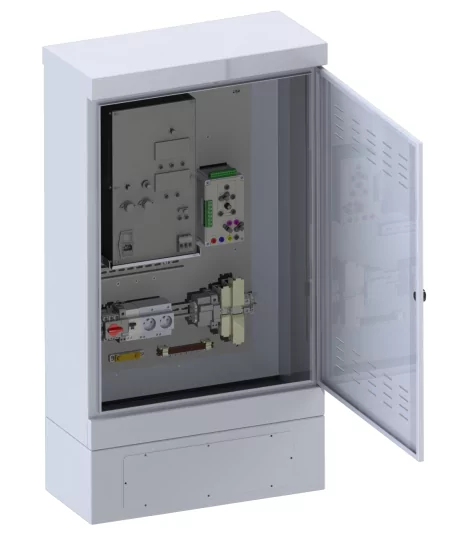

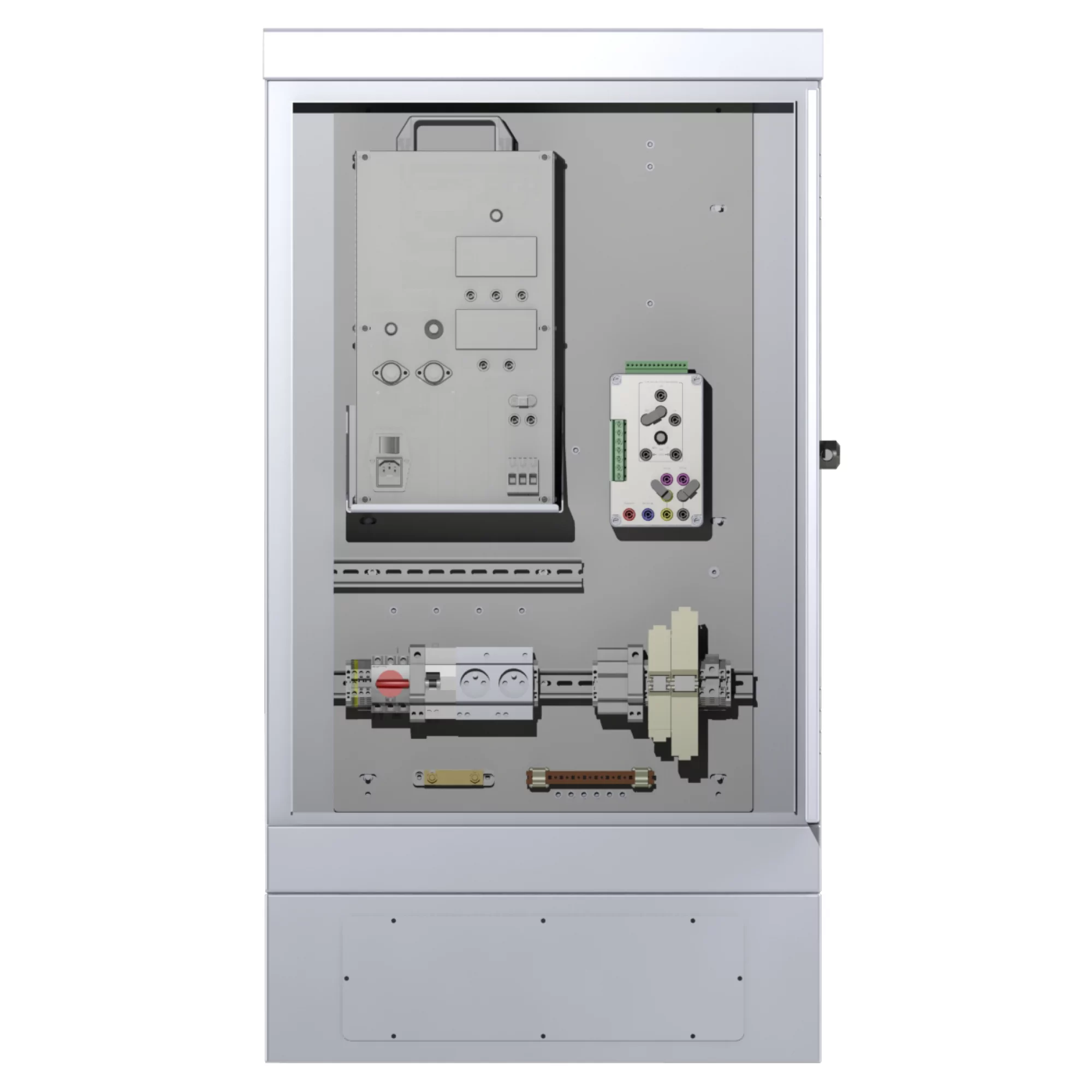

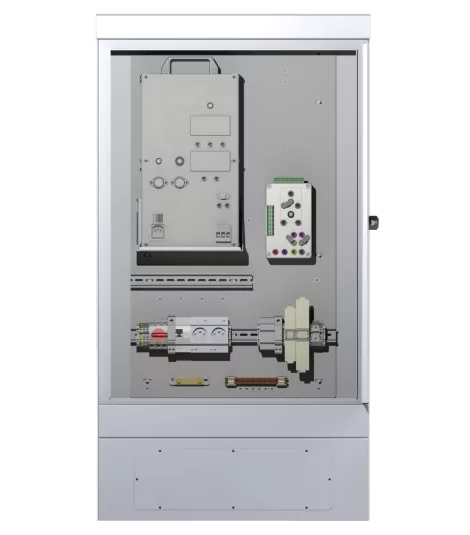

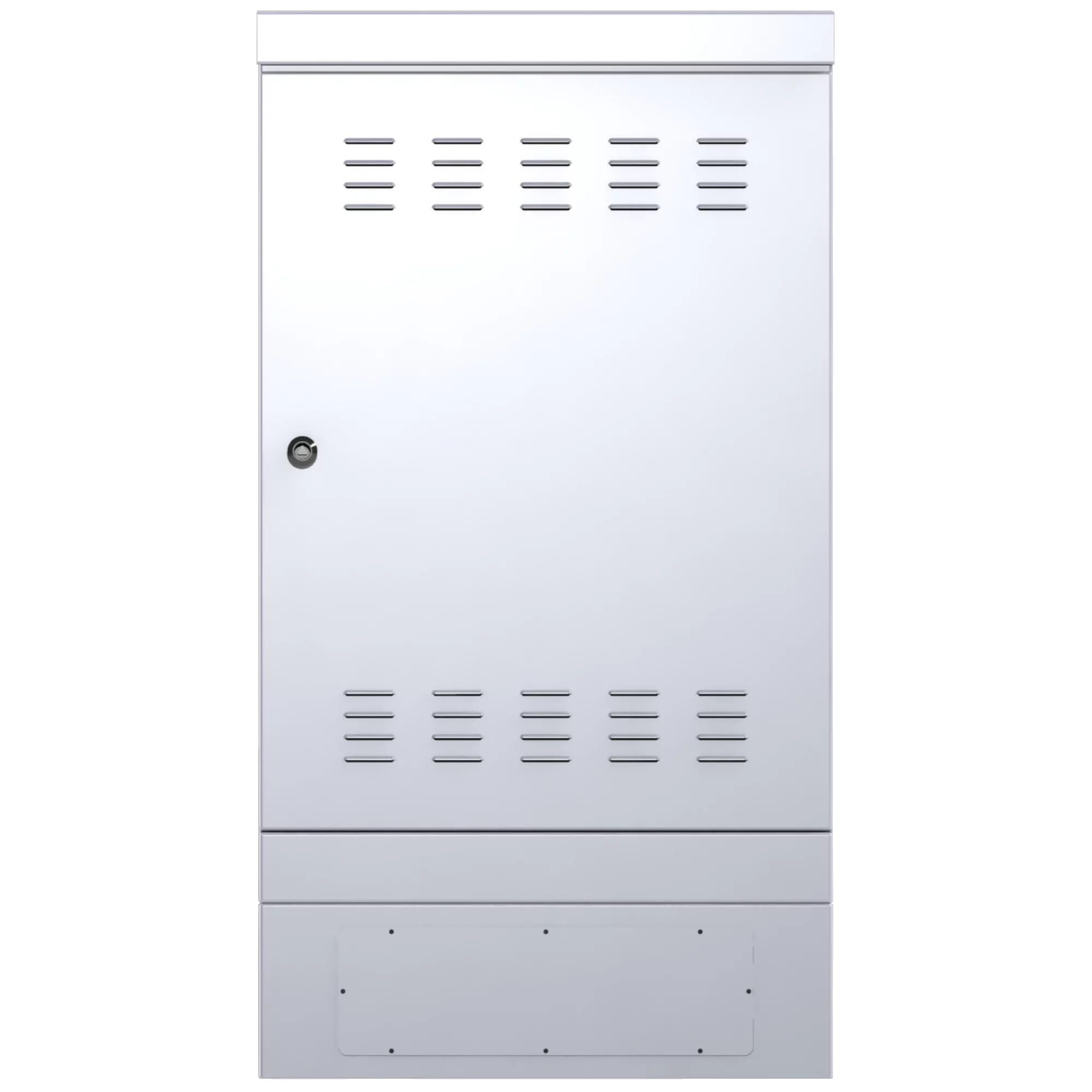

The rectifier station is installed in an X3 ALUMINUM cabinet of BC400 format.
1120*760*305 format BC400.
The rectifier station allows the reception of a rectifier and guarantees its protection against overvoltages, overcurrents and the effects of lightning.
A version against lightening is available for optimum protection. This version is only compatible with aluminum cabinets.
By default, the cabinet will be RAL7032 color. For another color please specify at the order.
Add to quote
Description
Characteristics of rectifier station X3 at size BC400 ALU :
- Supply voltage : 230Vac-50Hz.
- Surge arrester network : Un=255V - Imax=40kA - Up=1.5kV.
- Protection of electrical outlets : 16A-C-30mA.
- Surge arrester at the secondary : Un=100Vdc - Imax=40kA - Up<0.6kV.
- Measurement box for reading information and connection to telemetry.
- Target location for telemetry (type to be specified when ordering)
