08 - Electrode Electrode ULTRA LIFE with steel TOE integrated coupon
Subject

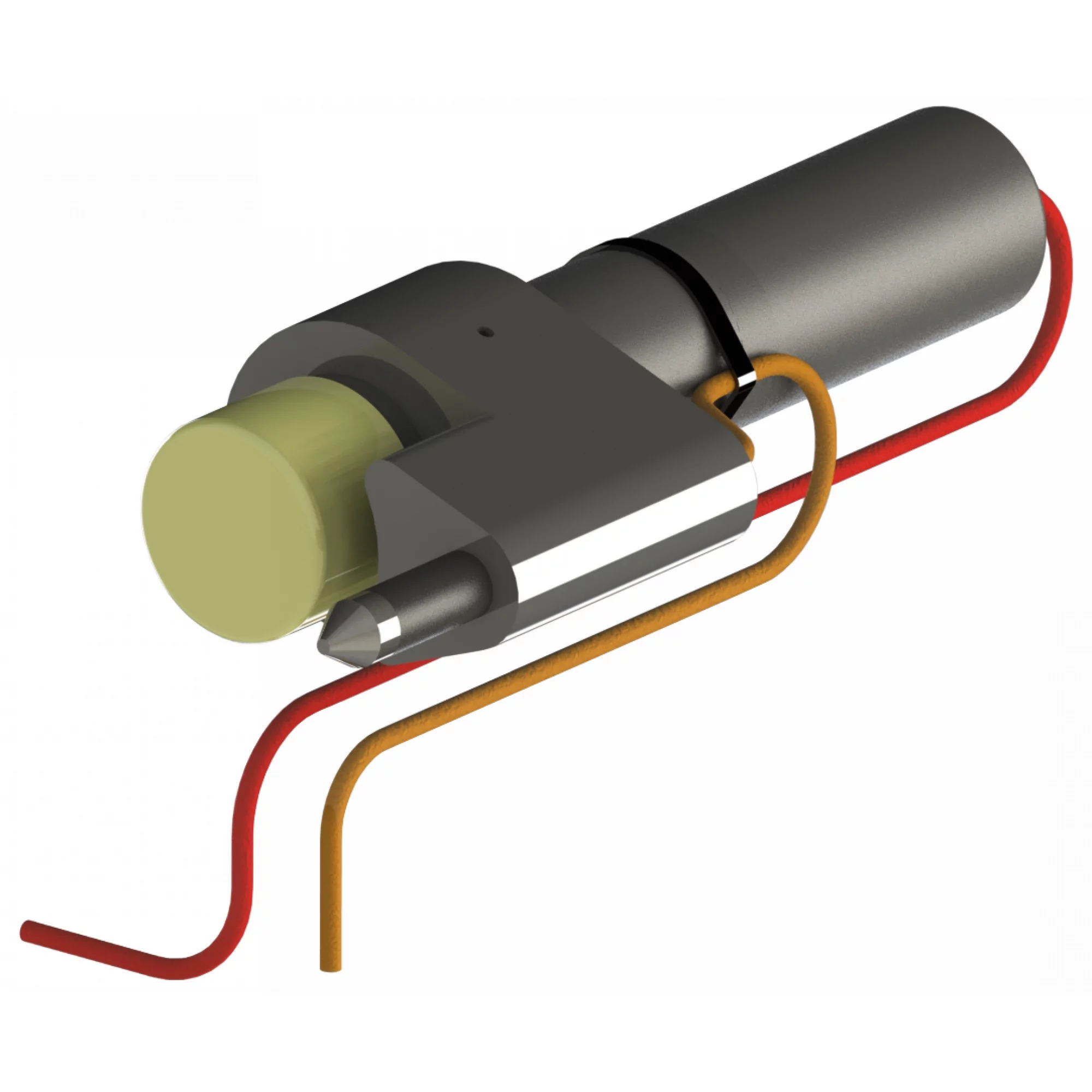

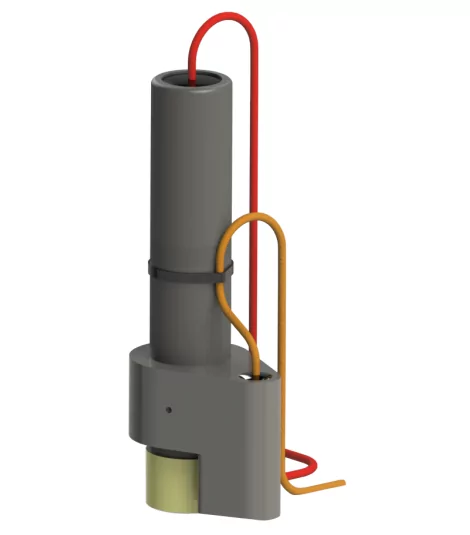

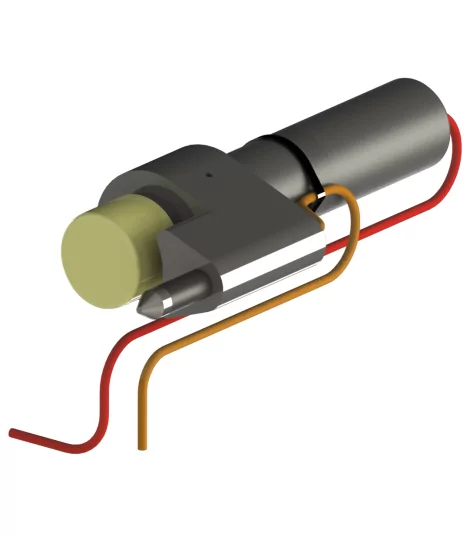

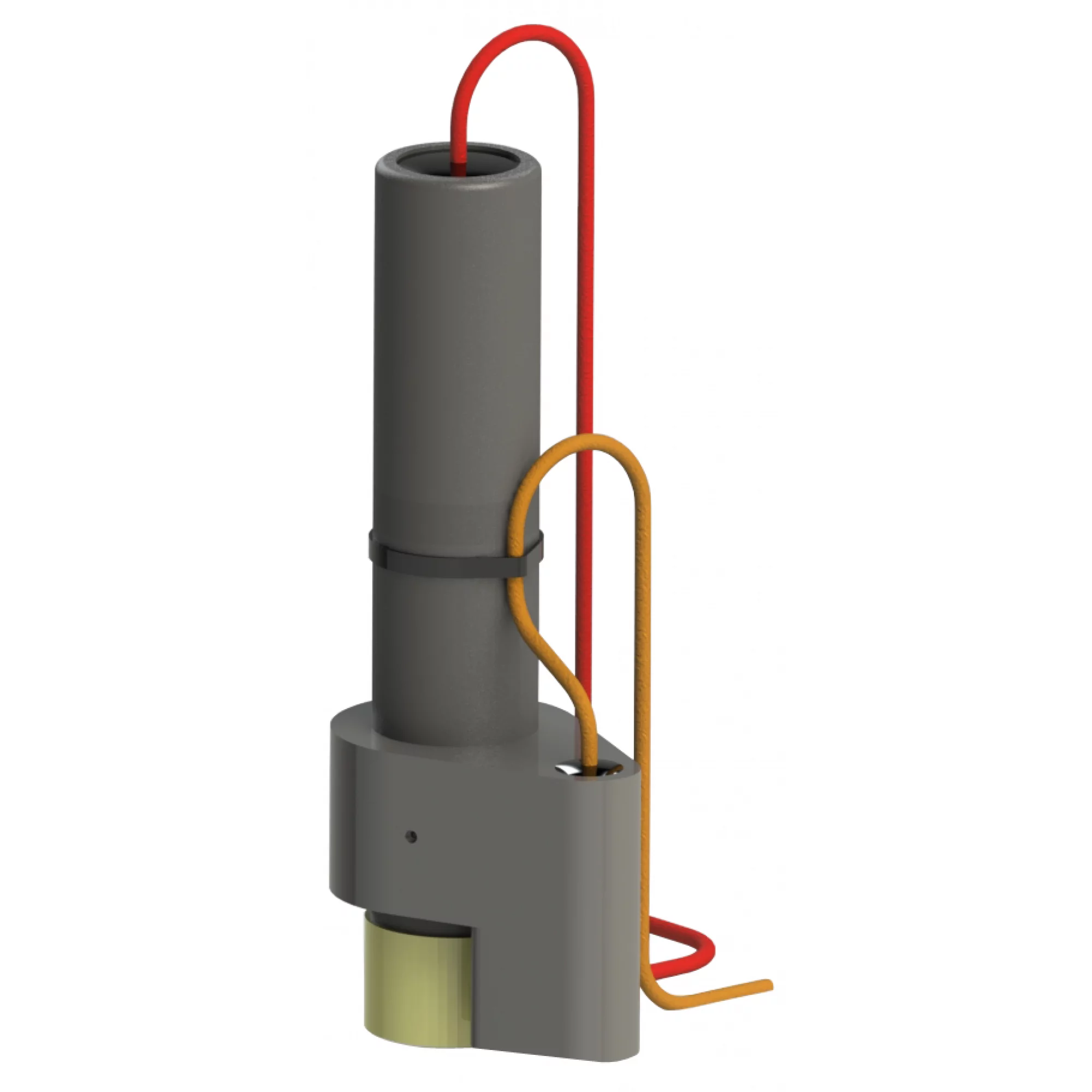

The ULTRA LIFE Gelified Cu / CuSo4 electrode, with STEEL TOE integrated coupon, is a measuring electrode that makes it possible to obtain the potential of the structure under cathodic protection. The measure of the coupon is at the closest, without risk of pollution. The Cu / CuSo4 ULTRA LIFE gelled measuring electrode is designed to be left standing.
The electrode is equipped with an integrated Cu / CuSo4 gel maintenance system. The controlled porosity of the plug allows optimum contact on all types of terrain.
The version based on the ULTRA LIFE T3 Ø60, has got a 10 years operating guarantee for a standard usage.
The version based on the ULTRA LIFE T1 Ø40, has got a 5 years operating guarantee for a standard usage.
Description
Characteristics
. Weight : 1.09kg - TYPE 1 Ø40mm base
1.78kg - TYPE 3 Ø60mm base
. Body Material: Polyacetal POM.C
. Gel: CuSo4 saturated (Potential close to the theoretical value)
. Tolerance : +/-20mV (Compared to the calomel electrode)
. The porosity of the plug is controlled
. Cable : HO7V-R Red, and specific cathodic protection cable 6mm² with 10M length

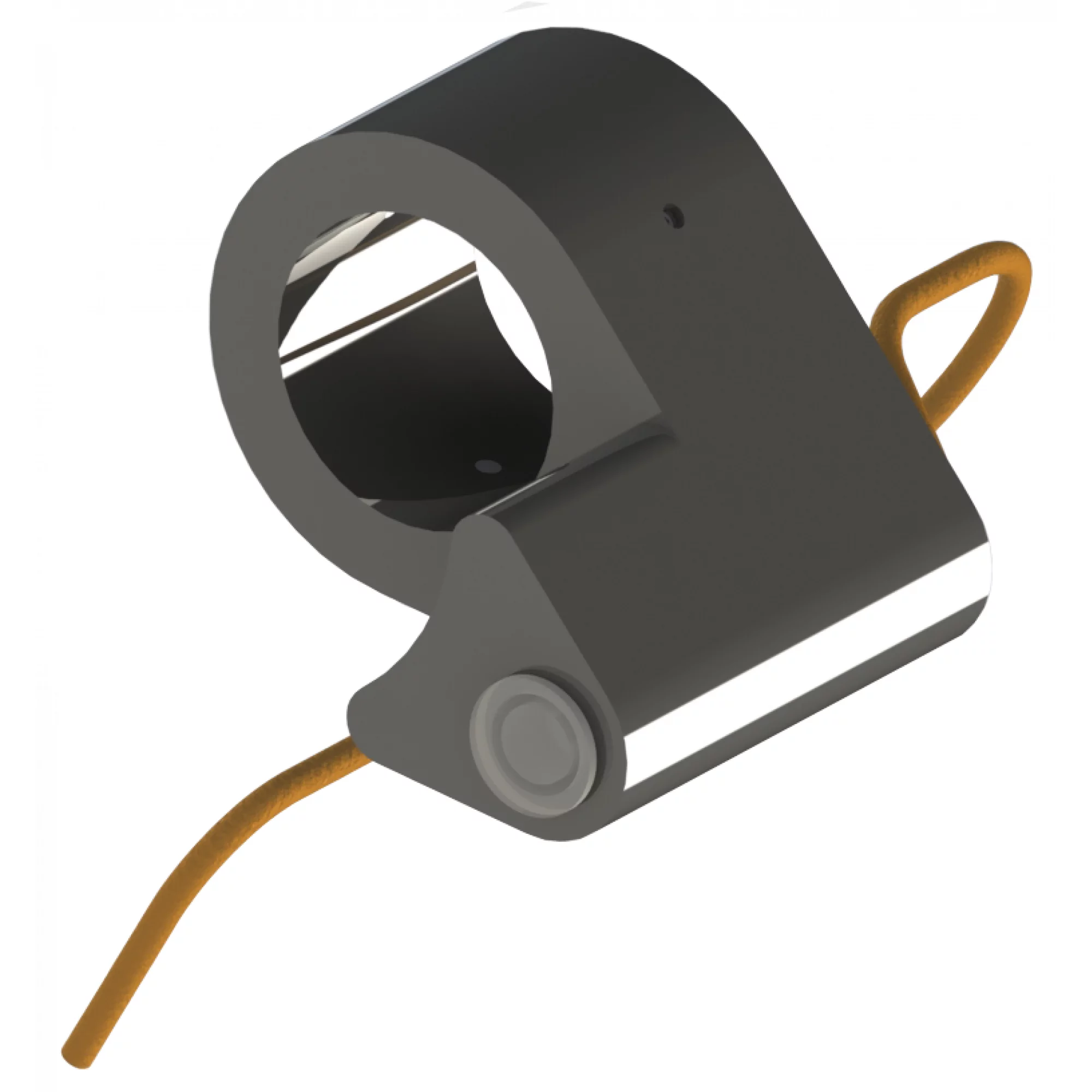

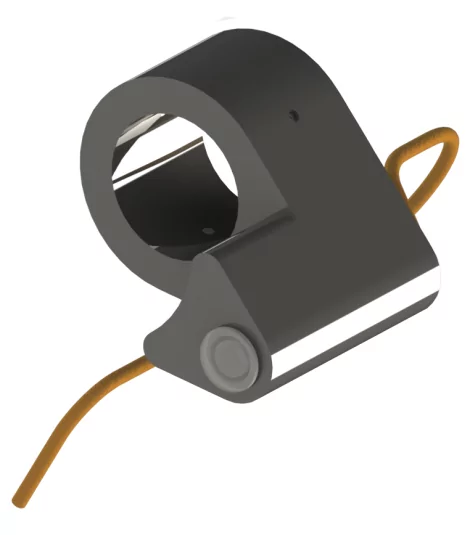

. Electrode TYPE 1 - Ø40 is compatible with standard STEEL TOE coupons 1CM², 5CM², 10CM², 25CM², 50CM², 100CM²
. Electrode TYPE 3 - Ø60 is compatible with standard STEEL TOE coupons 1CM², 5CM², 10CM², 25CM², 50CM², 100CM²
