08 - Electrode

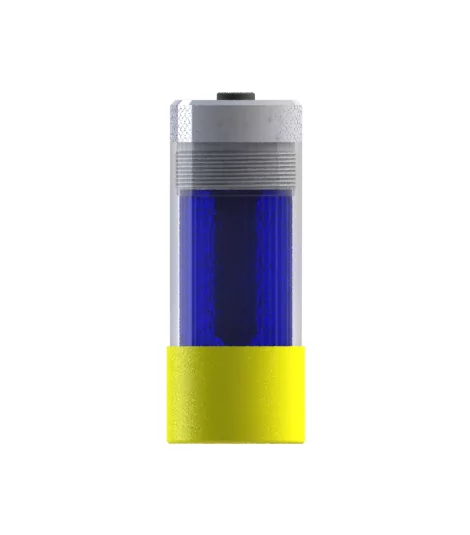

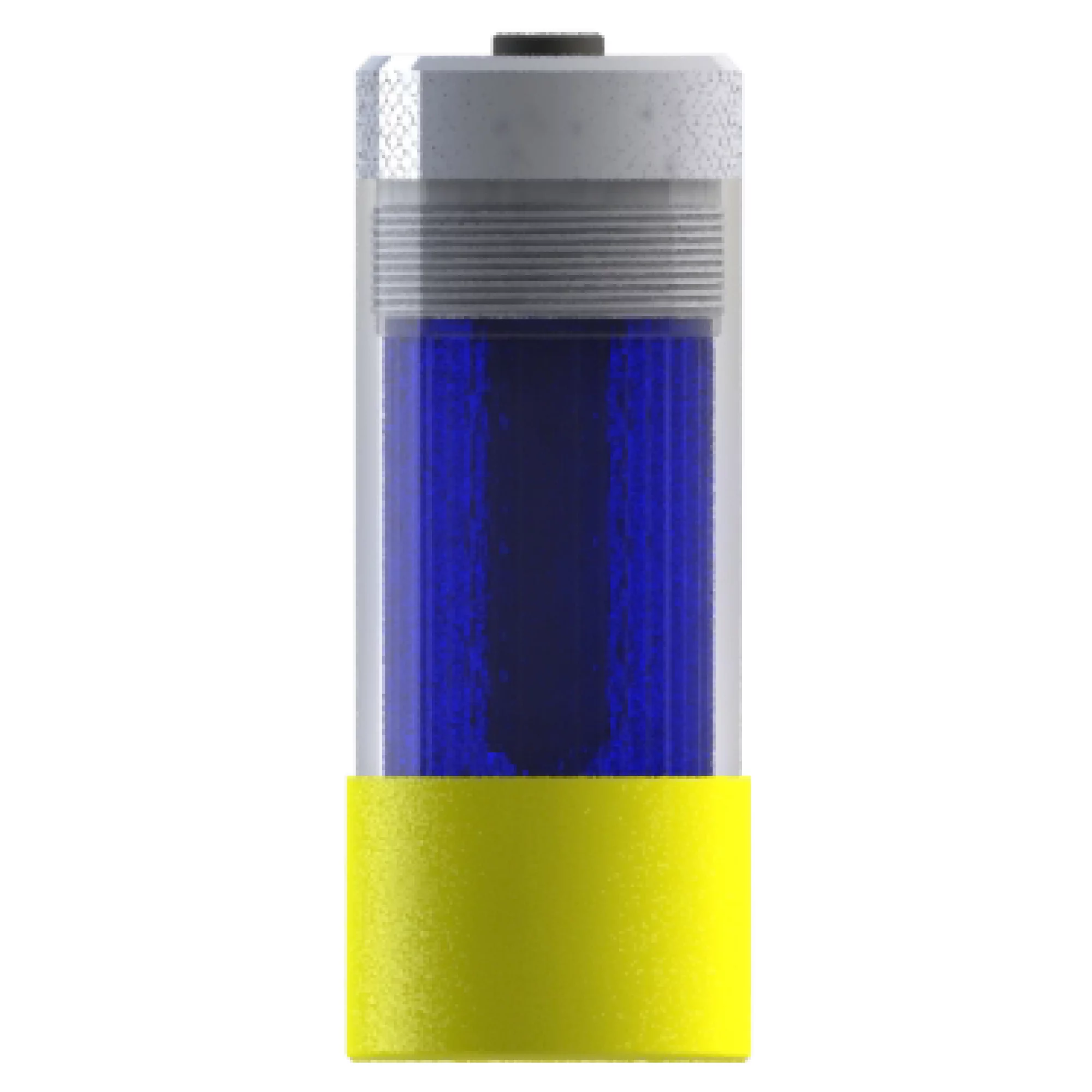

08 - Electrode Liquid electrode Cu/CuSo4 Ø50
Subject
The Cu / CuSo4 liquid electrode Ø50 makes it possible to obtain the potential of the structure under cathodic protection.
- The measuring electrode is used in the field to measure the potential of the structure to be protected.
- The STANDARD REFERENCE electrode is used to measure the drift of the measuring electrodes.
Add to quote
Description
Characteristics of Electrode liquid Cu/CuSo4 Ø50 :
-
The liquid Cu / CuSo4 electrode is delivered with its certificate of conformity and calibration.
-
Measuring electrode: -20mV / + 20mV
-
STANDARD REFERENCE electrode: -10mV / +10 mV
-
Weight 400g
-
CEI61010 plug
-
Saturated solution of CuSo4
-
Upper centering collar Ø50
-
Transparent PVC body
