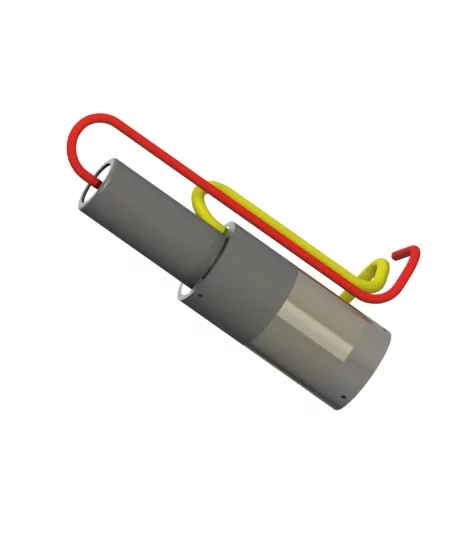

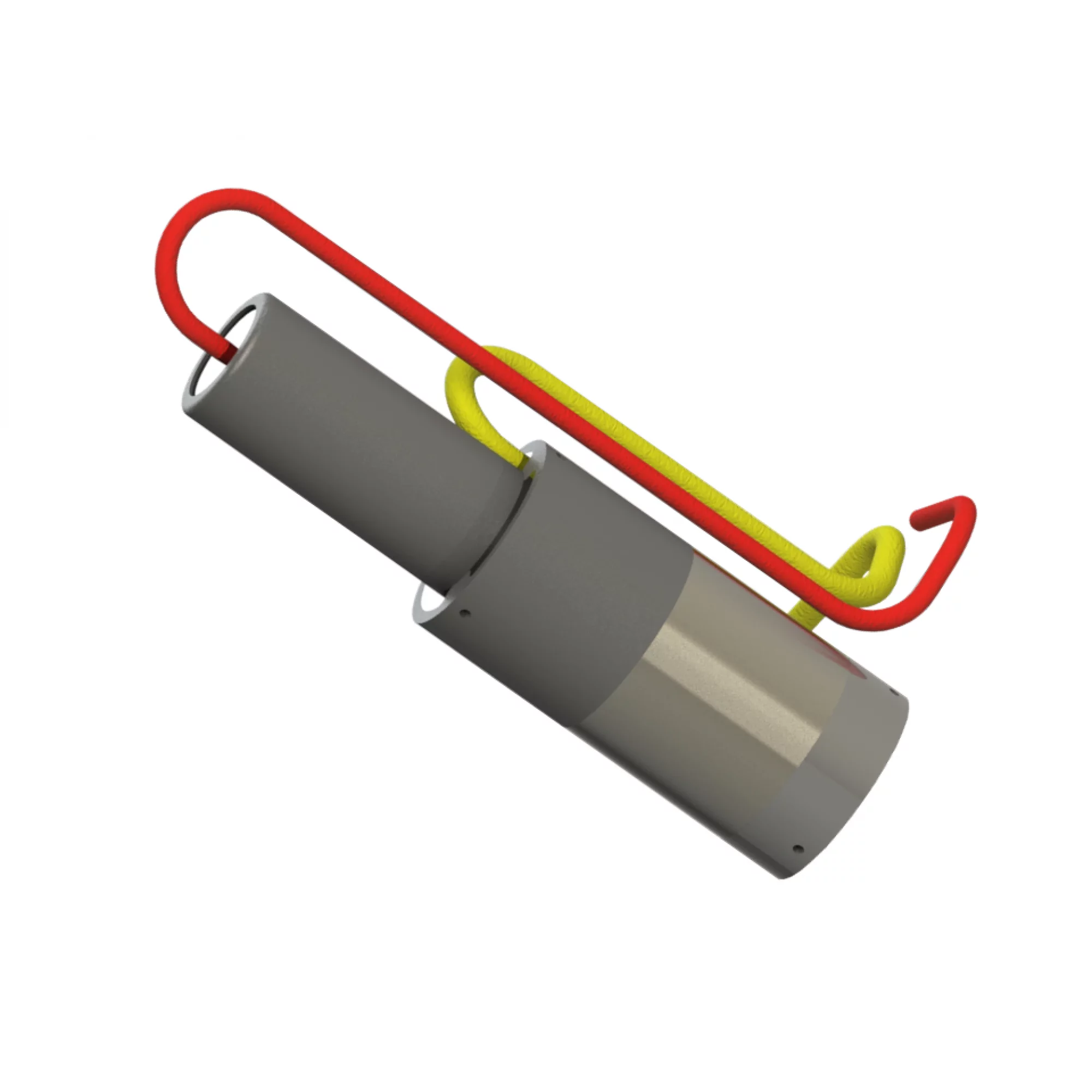

08 - Electrode Electrode ULTRA LIFE with cylindrical coupon
Subject
The ULTRA LIFE Gelified Cu / CuSo4 electrode, with a cylindrical integrated coupon, is a measuring electrode that makes it possible to obtain the potential of the structure under cathodic protection. The measure of the coupon is at the closest, without risk of pollution. The Cu / CuSo4 ULTRA LIFE gelled measuring electrode is designed to be left standing.
The electrode is equipped with an integrated Cu / CuSo4 gel maintenance system. The controlled porosity of the plug allows optimum contact on all types of terrain.
The T4 version is based on the ULTRA LIFE electrode Ø60 TYPE T3, with a 10 years operating guarantee for a standard usage.
The T2 version is based on the ULTRA LIFE electrode Ø40 TYPE T1, with a 5 years operating guarantee for a standard usage.
Description
Characteristics
. Weight : 1.09kg - TYPE 1 Ø40mm base
1.78kg - TYPE 3 Ø60mm base
. Body Material: Polyacetal POM.C
. Gel: CuSo4 saturated (Potential close to the theoretical value)
. Tolerance : +/-20mV (Compared to the calomel electrode)
. The porosity of the plug is controlled
. Cable : HO7V-R Red, and specific cathodic protection cable 6mm² with 10M length

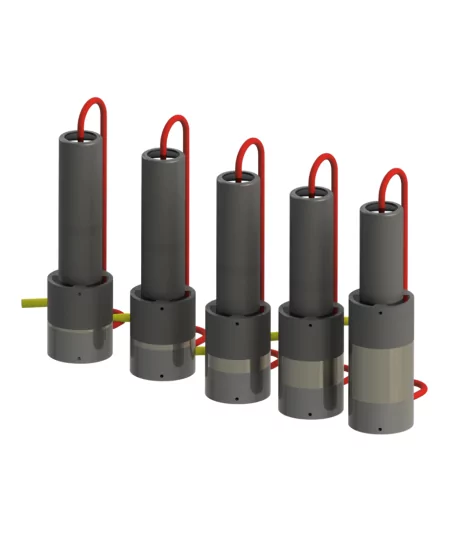

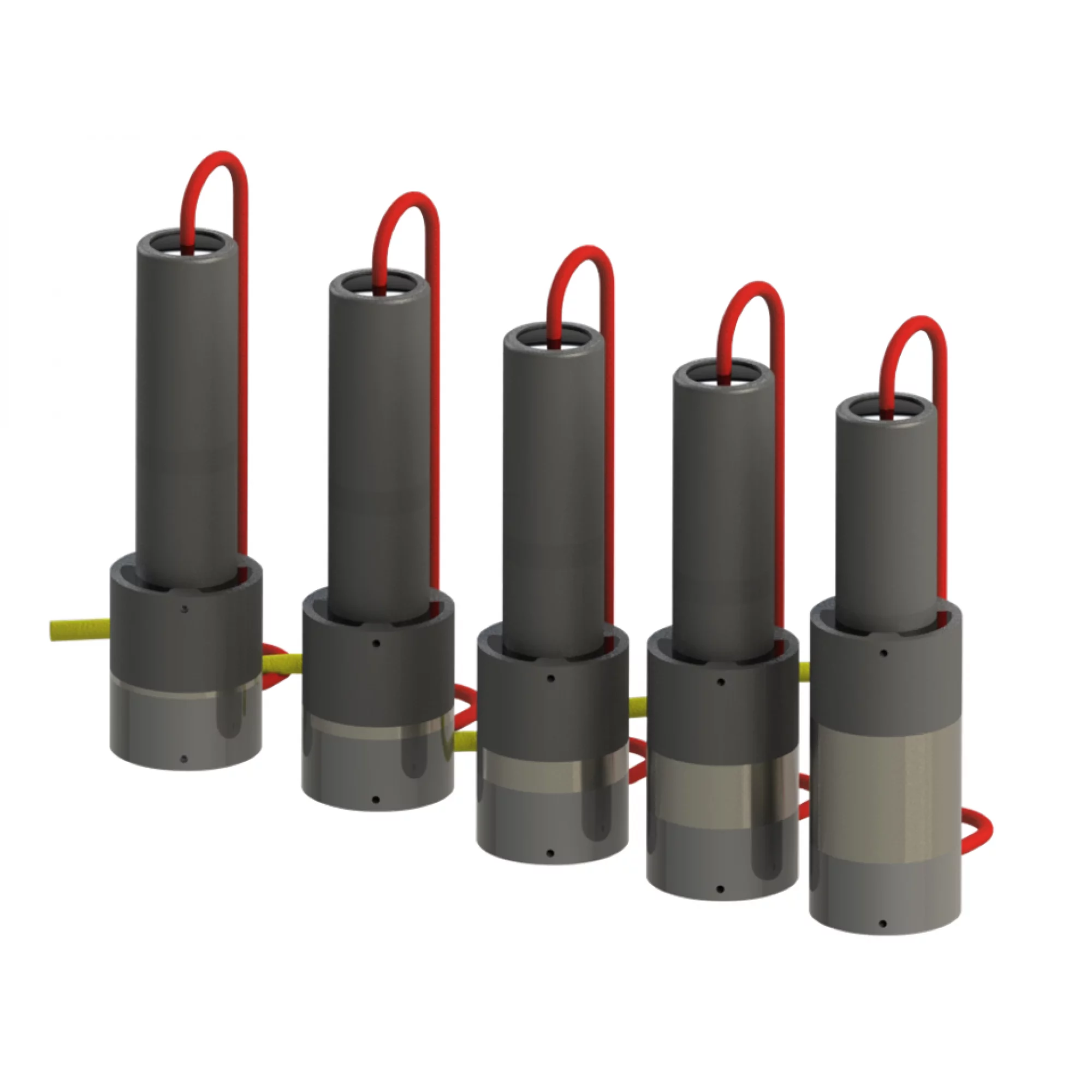

. Electrode with coupon TYPE 2 - Ø40 is available with cylindrical coupon 5CM², 10CM², 25CM², 50CM², 100CM²
Outside diameter Ø60mm
. Electrode with coupon TYPE 4 - Ø60 is available with cylindrical coupon 25CM², 50CM², 100CM²
Outside diameter Ø80mm
