08 - Electrode
08 - Electrode Gelified electrode ULTRA LIFE Cu/CuSo4
Subject

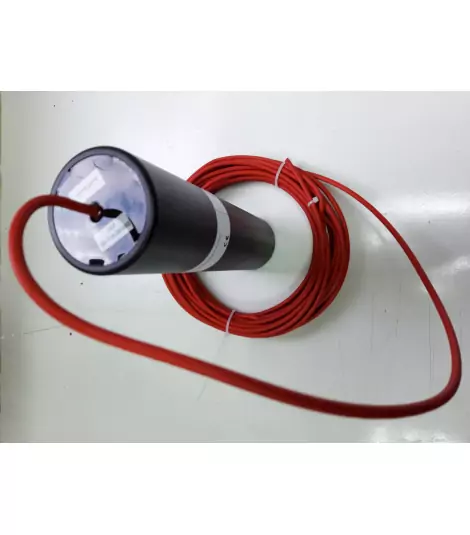

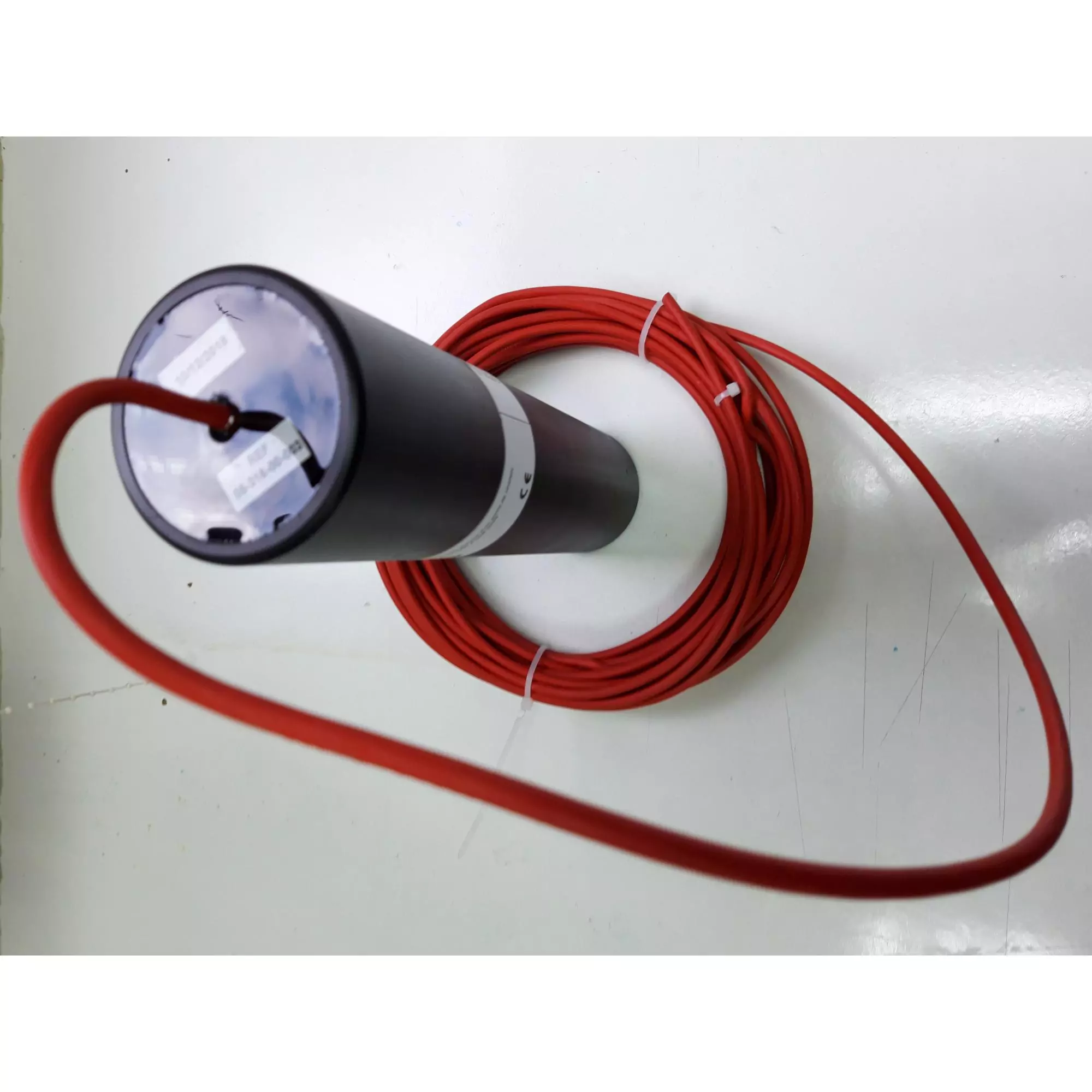

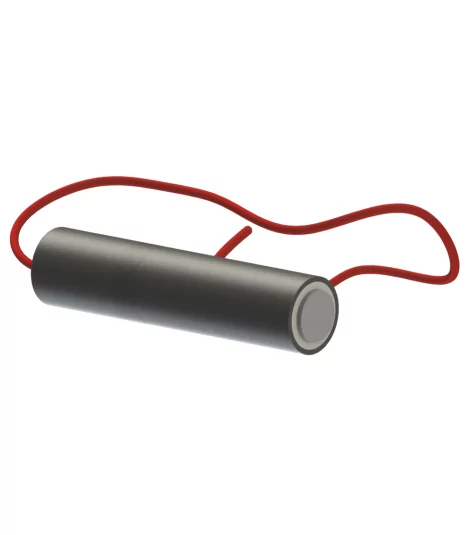

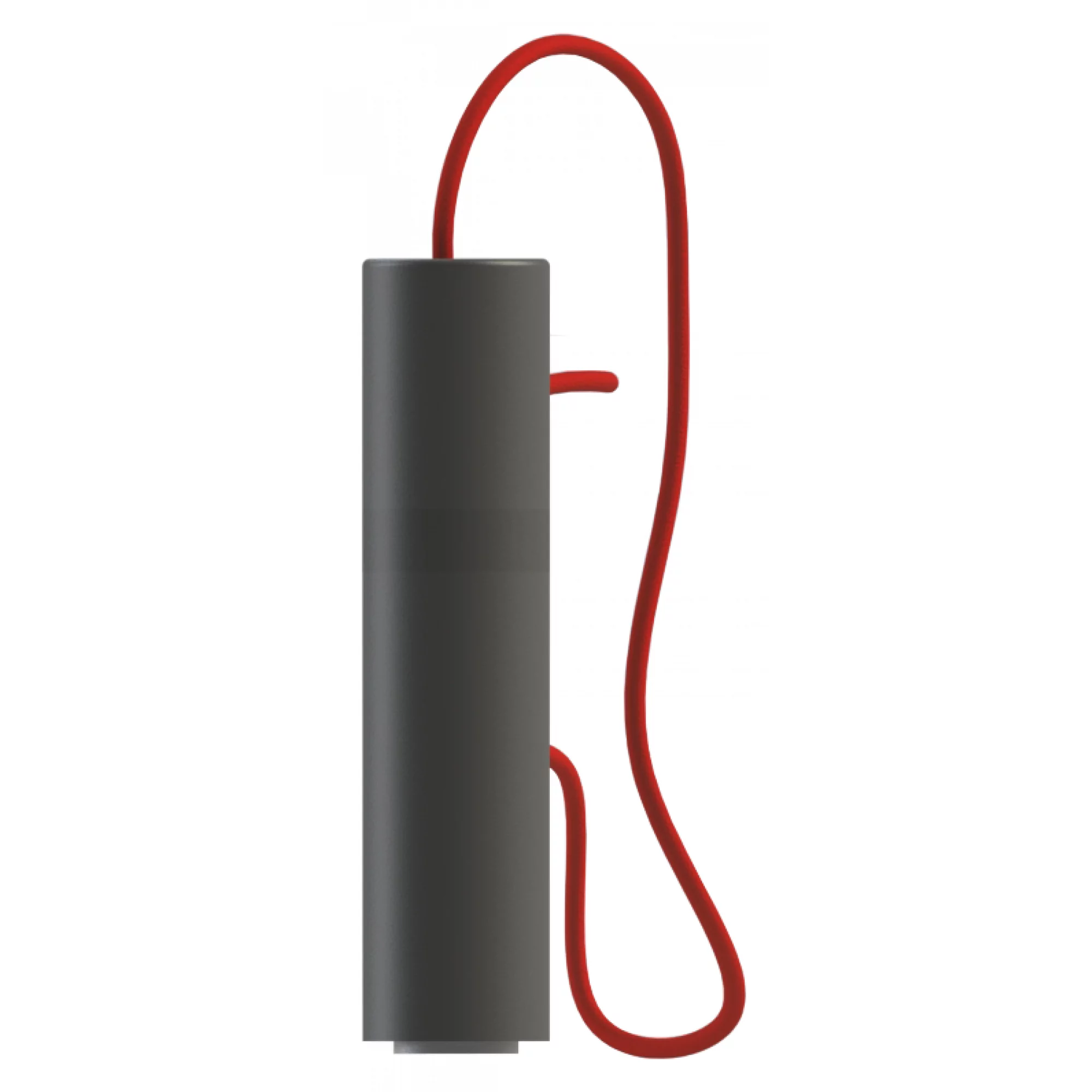

The Cu / CuSo4 ULTRA LIFE gelled measuring electrode is designed to be left standing.
The electrode is equipped with an integrated Cu / CuSo4 gel maintenance system. The controlled porosity of the ceramic plug allows optimum contact on all types of terrain.
Add to quote
Description
Characteristics
. Weight : 1.09kg - TYPE 1 Ø40mm
1.78kg - TYPE 3 Ø60mm
. Body Material: Polyacetal POM.C
. Gel: CuSo4 saturated (Potential close to the theoretical value)
. Tolerance : +/-20mV (Compared to the calomel electrode)
. The porosity of the ceramic plug is controlled
. Cable : HO7V-R Red
Operating guarantee
Type 1 - Ø40mm : 5 years
Type 3 - Ø60mm : 10 years
