08 - Electrode Electrode Ag/AgCl Silver Chloride
Subject

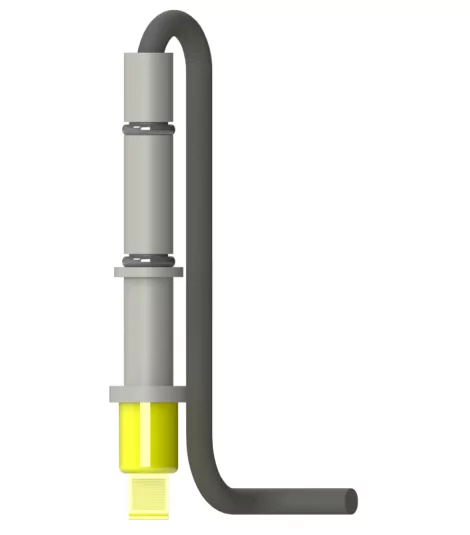

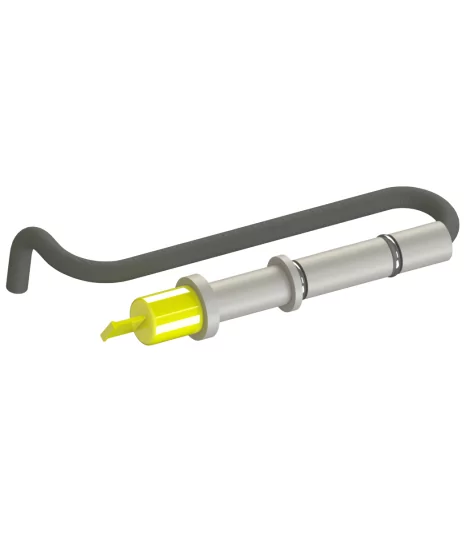

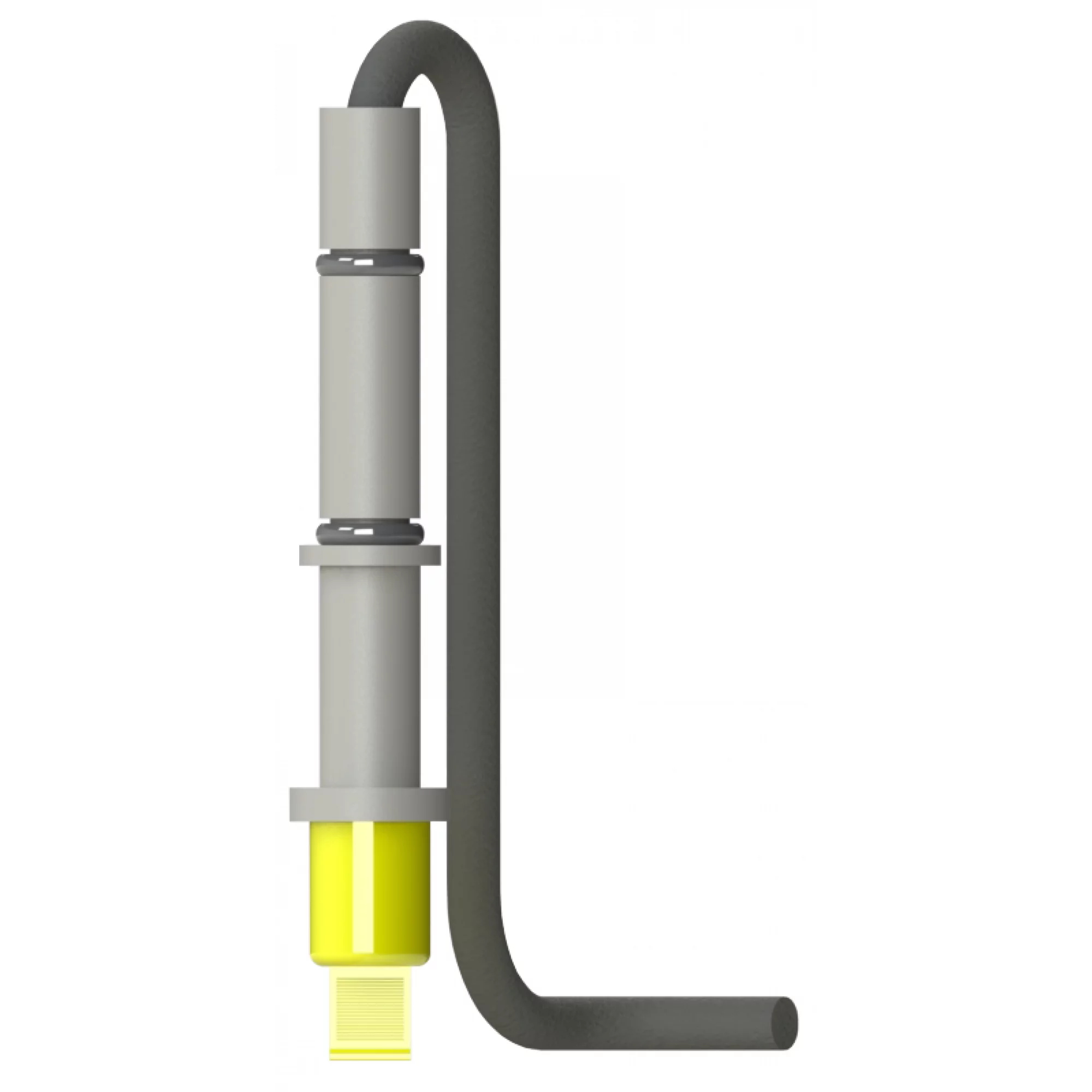

The JACQUET DECHAUME PERF Ag/AgCl electrode Silver Chloride, permanent or portable.
-
The PERF C4 Ag/AgCl electrode is used to measure the potential of the structure to be protected.
-
The PERF Ag/AgCl electrode is permanently installed on hard-to-reach structures. Watertight installation possible as standard.
Long-term installation – 20 years’ experience
Description
Features
-
PERF indwelling electrode with 744g mass. 10m of flexible 2.5² PC cable, adjustable on request.
-
PERF C4 measuring electrode with Ø4 plug. Weight 150g
-
Silver chloride 99.9% purity
-
Sealed mounting possible, included as standard
-
Ceramic junction
-
Permanent PERF: Ø15mm - Ht 122.5mm
-
PERF C4 de mesure - prise fiche Ø4 : Ø20mm - Ht 107mm
