01 - Transformer Rectifiers Rectifier DSE Argo

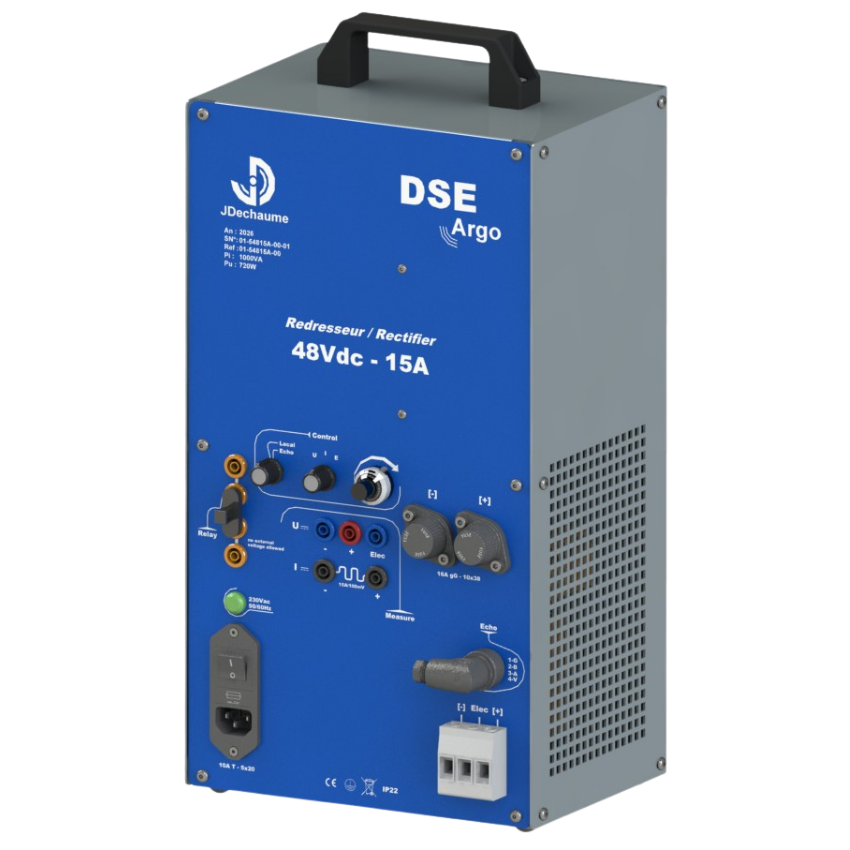

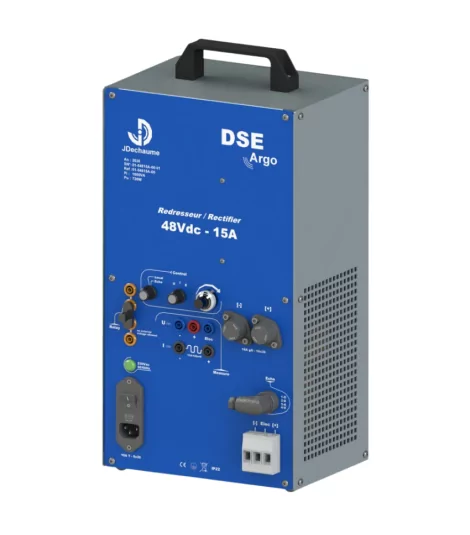

DSE Argo Rectifier
The DSE Argo Rectifier is a cathodic protection rectifier designed to provide reliable and controlled power supply to installations. It incorporates all the features of the DSE rectifier while integrating the possibility of remote control via the ECHO Argo telemetry solution as well as other telemetry solutions that you are already using.
The DSE Argo rectifier can replace a standard DSE rectifier with identical mounting dimensions, making it easy to integrate into existing installations.
Description
A remotely controllable rectifier
When combined with ECHO Argo, the DSE Argo Rectifier allows operating setpoints to be adjusted remotely, without on-site intervention.
This remote control improves responsiveness to installation variations and helps maintain optimal cathodic protection over time.
Integration into the ECHO ecosystem
The DSE Argo Rectifier integrates seamlessly into the ECHO ecosystem.
Telemetry ensures monitoring of essential parameters, while remote control enables direct action on the rectifier for more efficient and better-controlled management of protected structures.
Technical Specifications :
- Power supply: 230Vac-50Hz
- Output voltage: Continuous (Ripple factor <5%)
- Controlled by ECHO or 0.10V
- Measurement sheet CEI61010 Ø4
- Primary protection: Fuses
- Secondary protection: Fuses
- External cyclical switsh "on/off" location: electronics cut (no external voltage allowed on these terminals)
