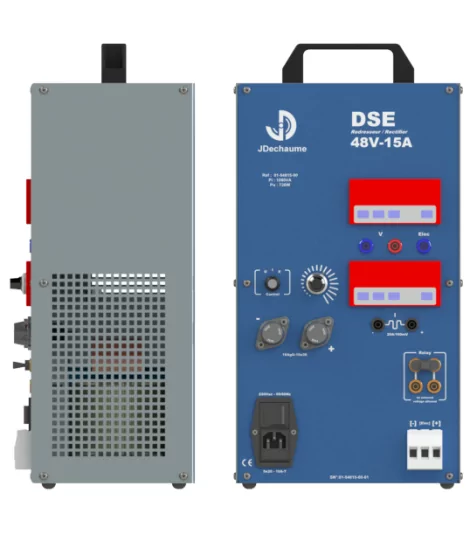

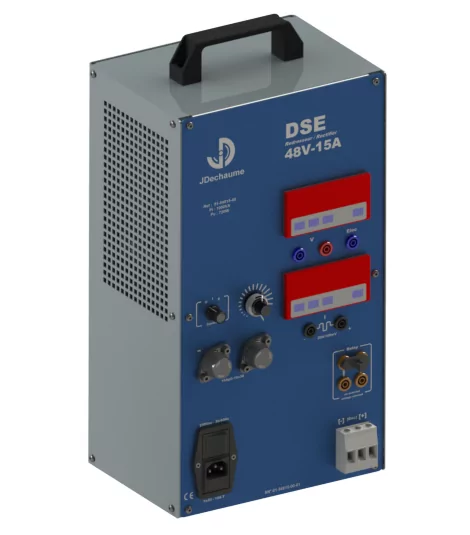

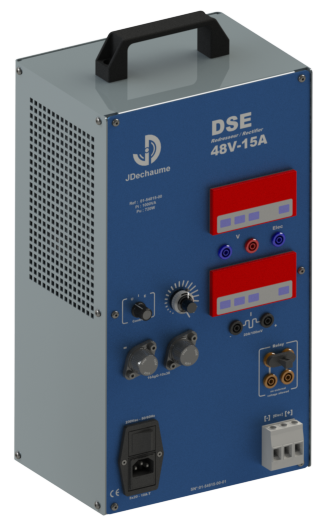

01 - Transformer Rectifiers Electronic Rectifier self-regulated DSE
Subject
The electronic rectifier self-regulated DSE is an electronic current generator which is current or voltage self-regulated.
Description
Operation of the Rectifier :

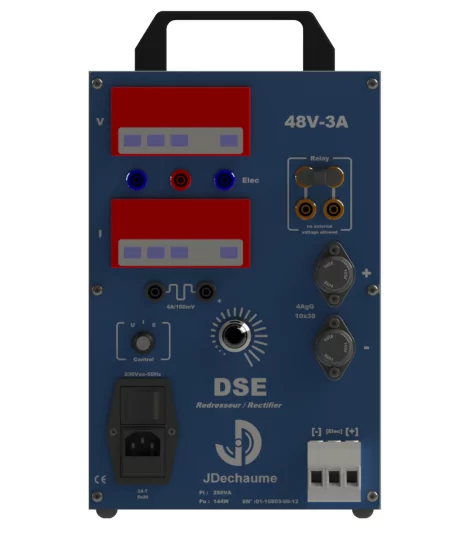

The "Control" button consists of three parts: U, I, and E. Simply turn it towards one of these letters.
-
U: Voltage Generator Mode
The output voltage is set via a front display potentiometer.
The current is adjusted to maintain a stable voltage.
-
I: Current Generator Mode
The output current is set using the front panel potentiometer.
The voltage is adjusted to maintain a stable current.
-
E: Rectifier controlled by an electrode potential
Current and output voltage adjust to keep the electrode set and the value measured at the nearest.
Technical Specifications :
- Power supply: 230Vac-50Hz
- Output voltage: Continuous (Ripple factor <5%)
- Voltage current display: Digital
- Measurement sheet CEI61010 Ø4
- Primary protection: Fuses
- Secondary protection: Fuses
- External cyclical switsh "on/off" location: electronics cut (no external voltage allowed on these terminals)
