09 - Measuring connection plate
09 - Measuring connection plate Connection plate 4 X (2 WAYS+ELECT)
Subject
Connection plate 4 × (2 ways + electrode), for BC100 cabinet. CE61010 plug, up to 20 A, 2.5–35 mm² terminals. Modular, robust and easy to install.
Add to quote
Description
Technical characteristics of the Connection plate 4 X (2 Ways + Electrode) :
-
Measurement on plug CE61010 (diameter 4 mm)
-
Current carrying capacity: 20 A
-
Terminal block cable section: 2.5 mm² to 35 mm²
-
Insulating PVC backing

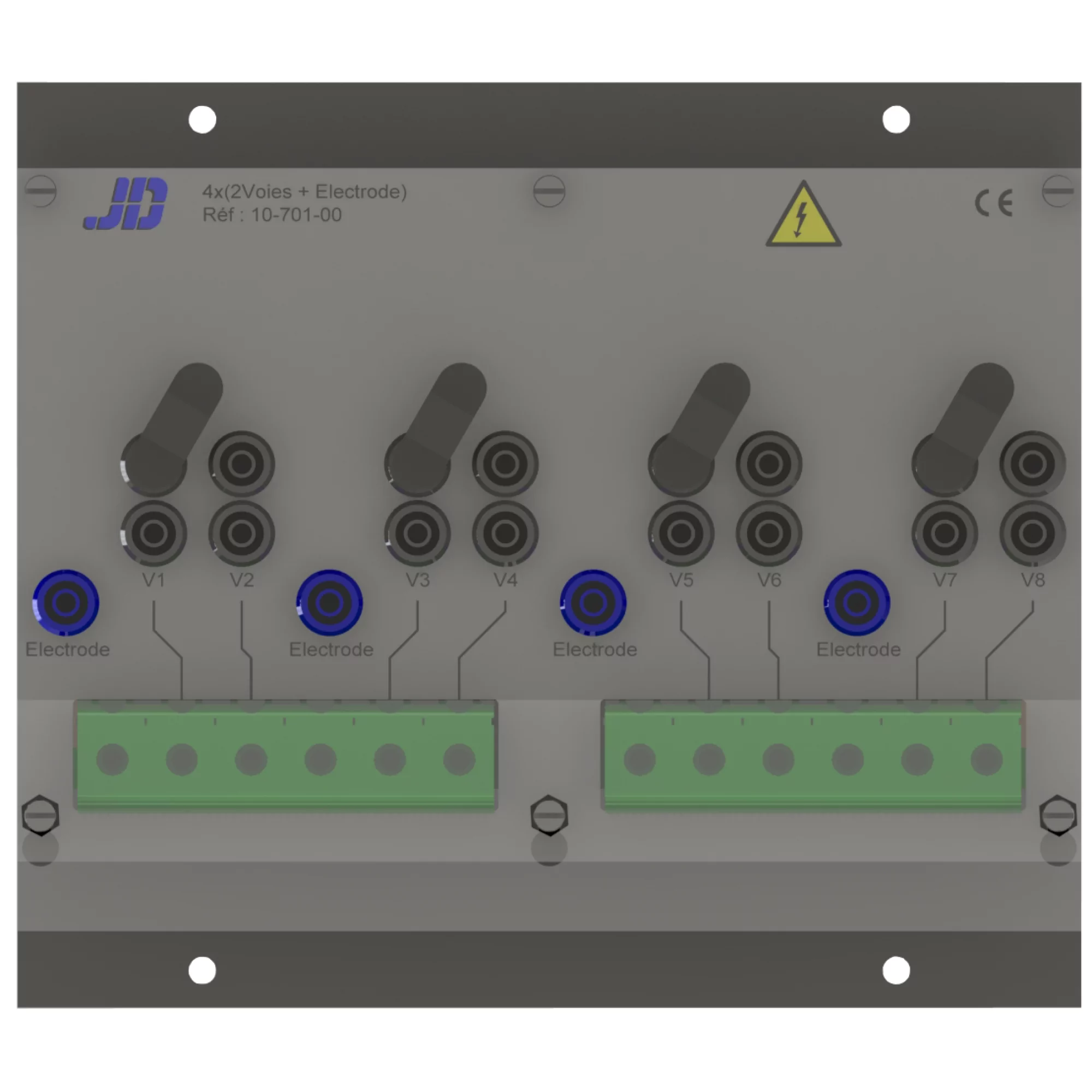

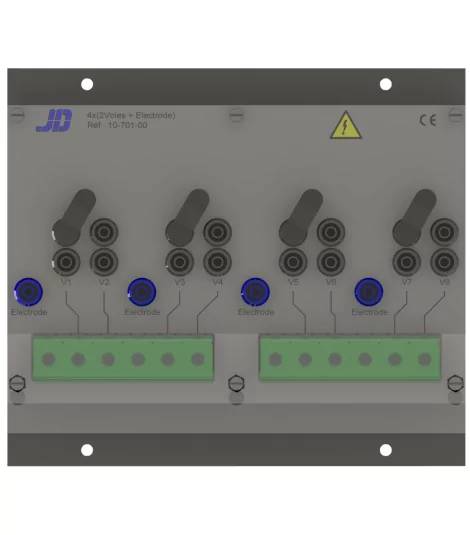

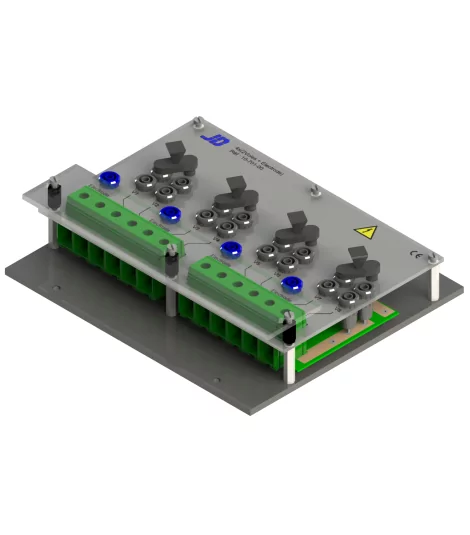

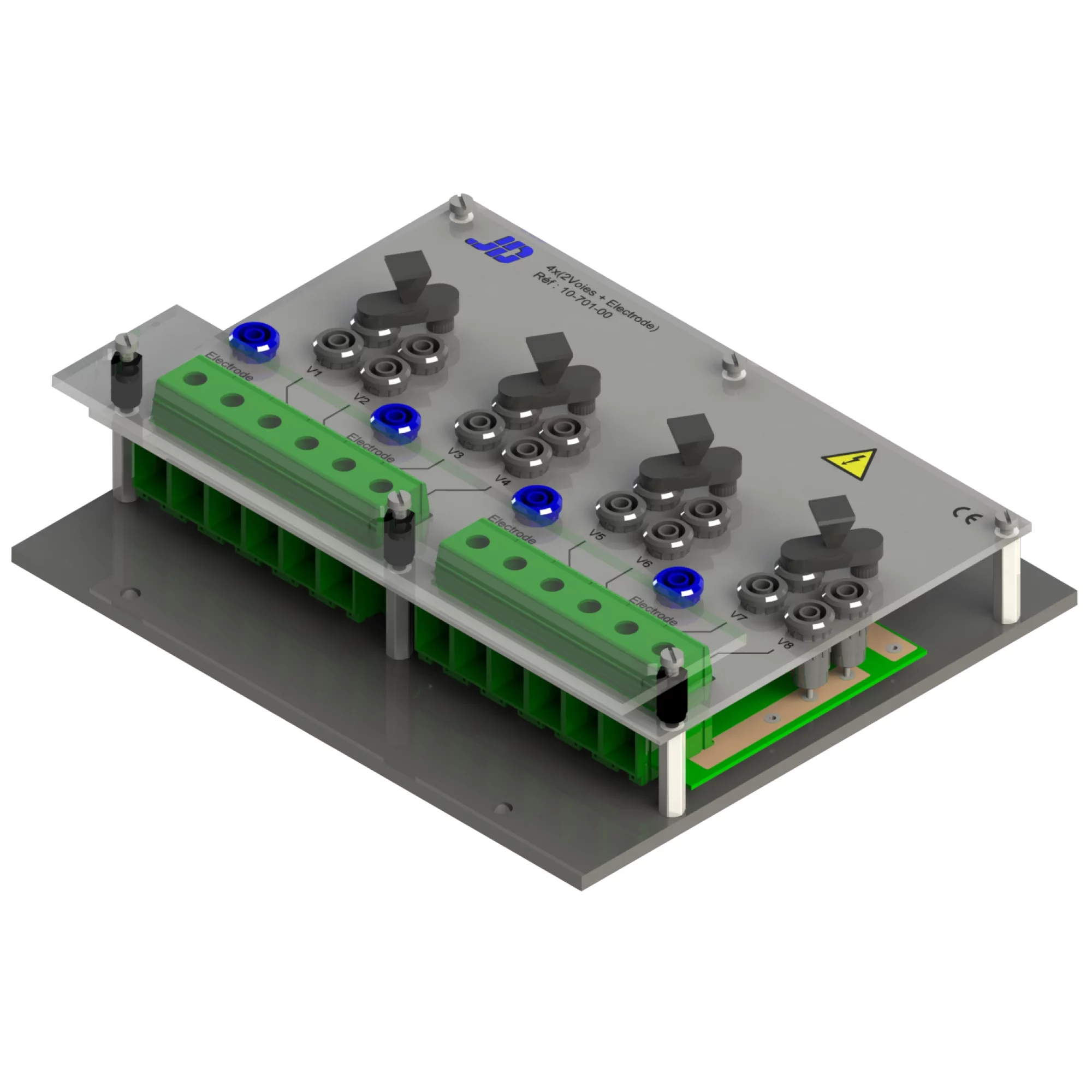

This connection plate is equipped with 4 modules, each composed of 2 ways (V1 and V2) + 1 electrode.
Designed for installation in a BC100 cabinet.
