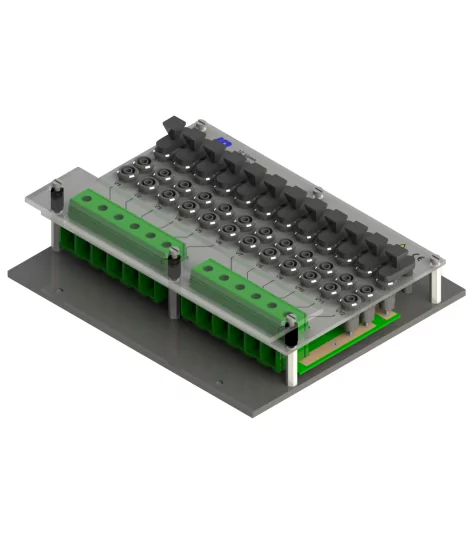

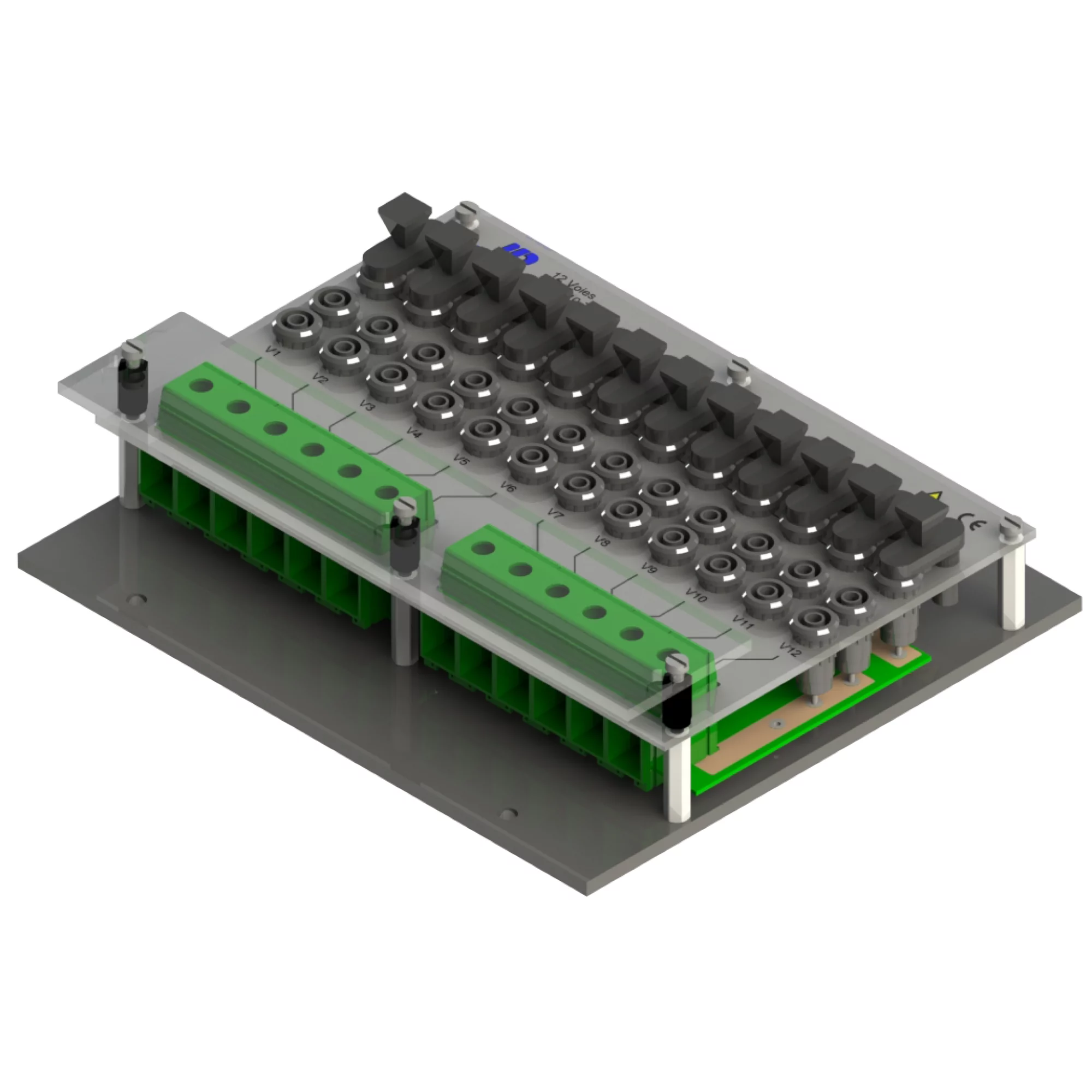

09 - Measuring connection plate Connection plate 12 ways
Subject
Connection plate 12 ways V1 to V12. For BC100 cabinet. CEI61010 measurement, up to 20 A, 2.5–35 mm² terminals. Robust and easy to integrate.
Add to quote
Description
Technical characteristics of the connection plate 12 ways :
-
Measurement via CEI61010 plug (4 mm diameter)
-
Current carrying capacity: 20A
-
Terminal block cable section: 2.5 mm² to 35mm²

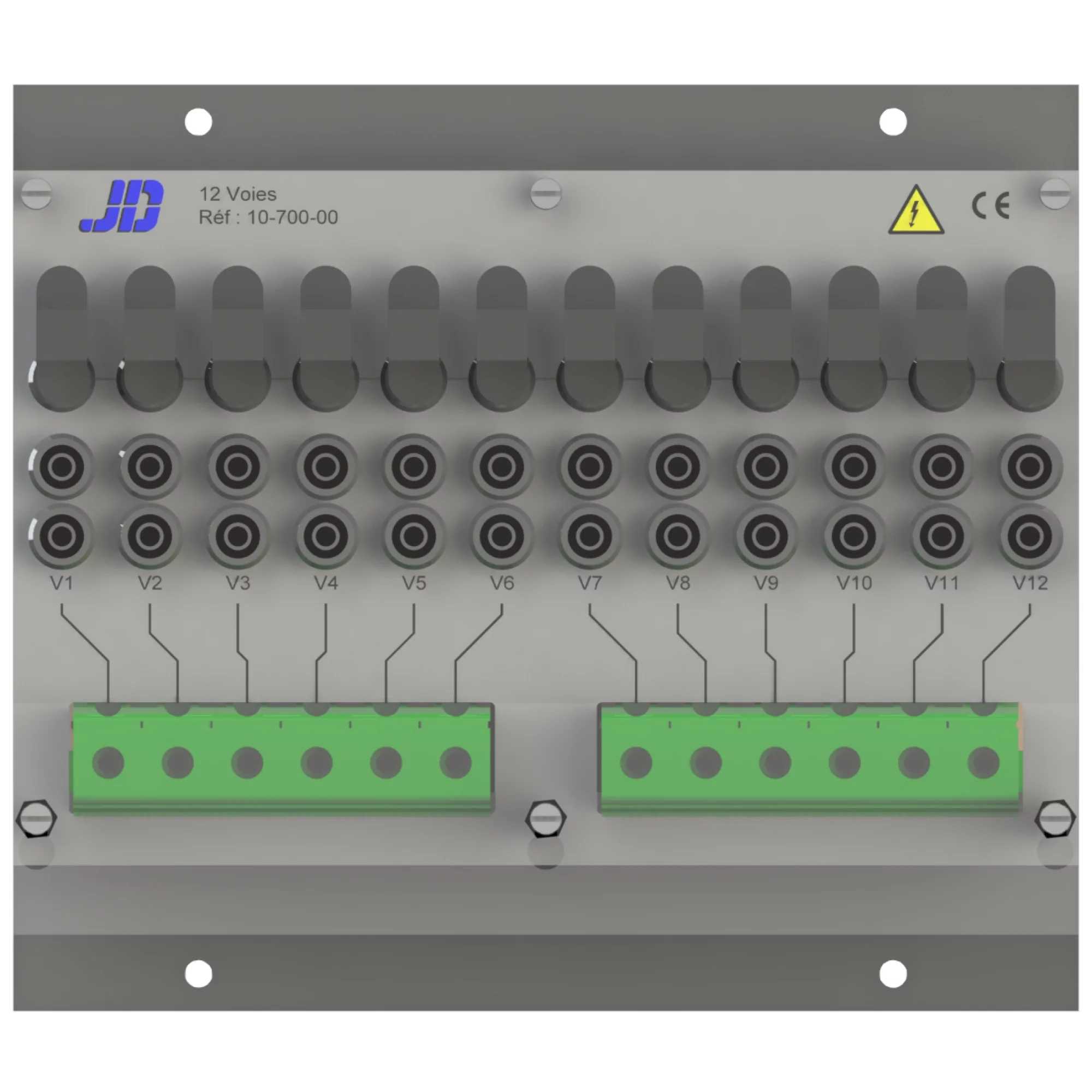

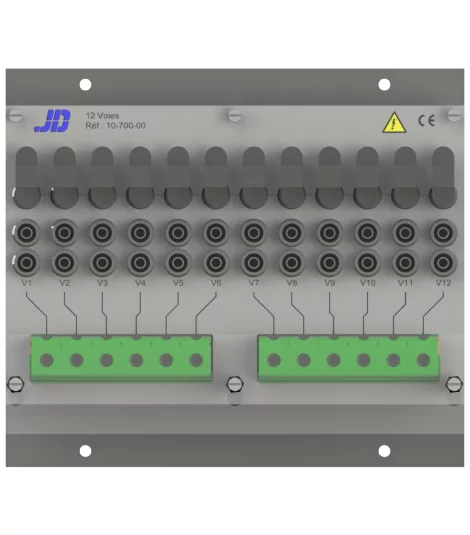

Connection plate equipped with twelve terminals labeled V1 to V12.
Designed for installation in a BC100 cabinet.
