11 - Grounding - AC Filter - Interconnection
11 - Grounding - AC Filter - Interconnection Portable case MALT - Electrical Filter Grounding
Subject

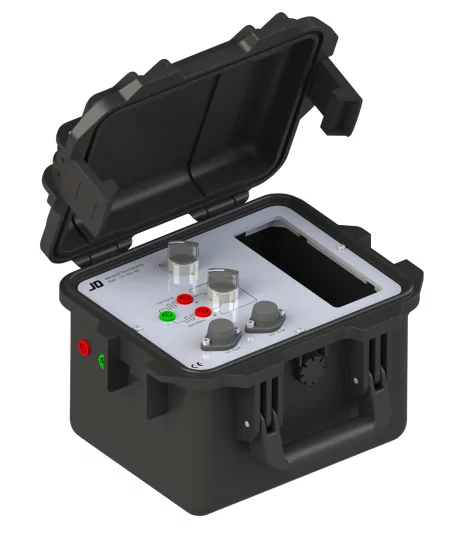

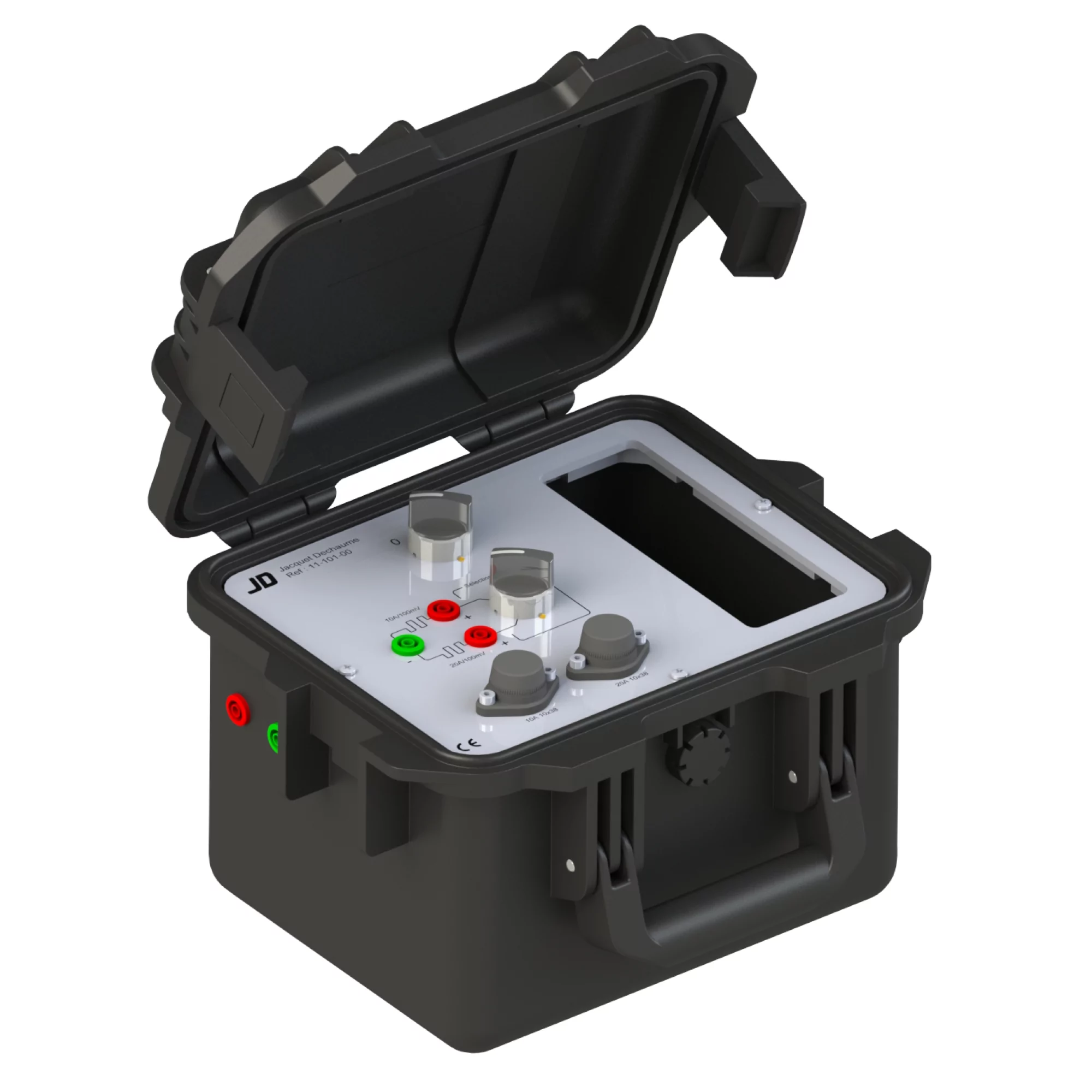

The PORTABLE Electrical Filter Grounding Box MALT enables measurement and evacuation tests of alternating currents in structures to earth. The box has a housing to accommodate a recorder.
The construction box is solid, compact, equipped with a handle, and weighs only 4.3 kg.
200 x 250 x 300 MM
Add to quote
Description
Characteristics
-
Filter AC 2x100000µF 20A-60V max.
-
Measurement and plug to the structure with plugs CEI61010 (Diam 4mm).
-
Shunt selection button 10A or 20A.
-
On / Off switch.
-
Cables 2.5² red and green provided.
