Description

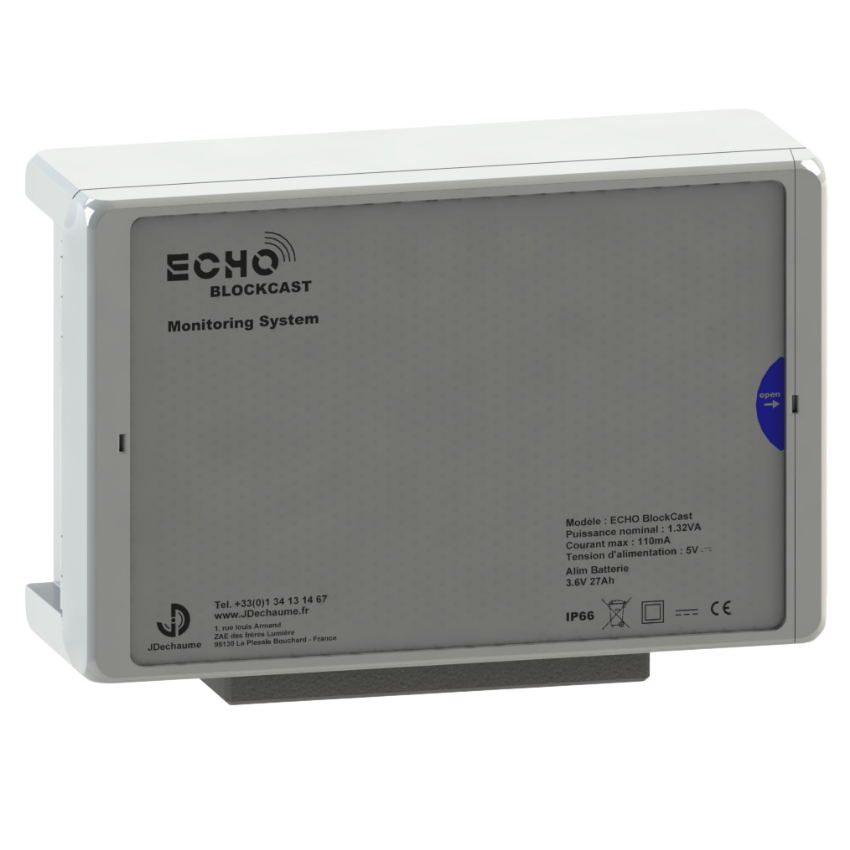

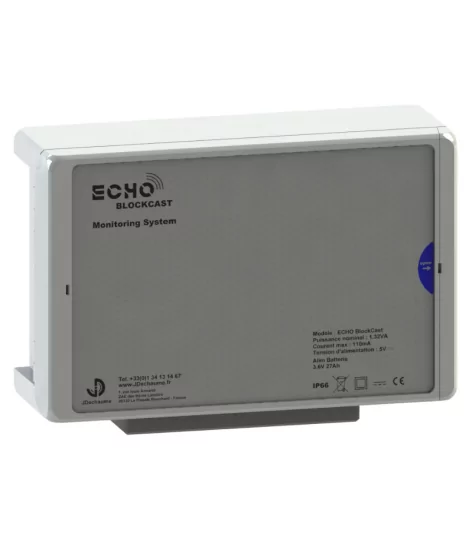

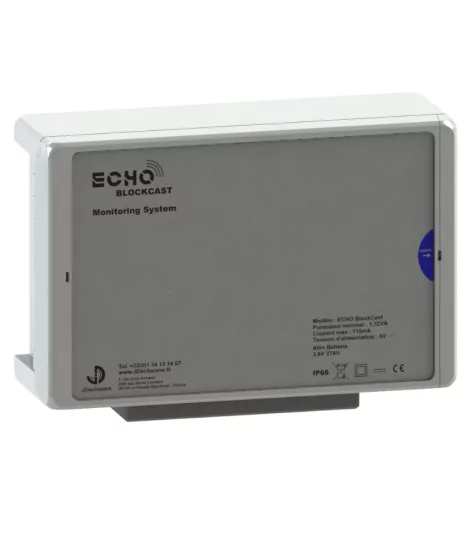

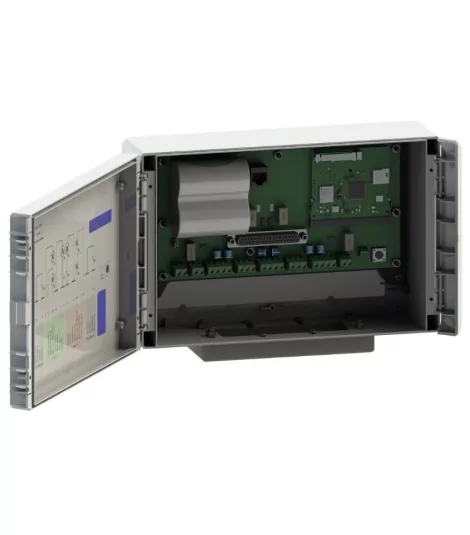

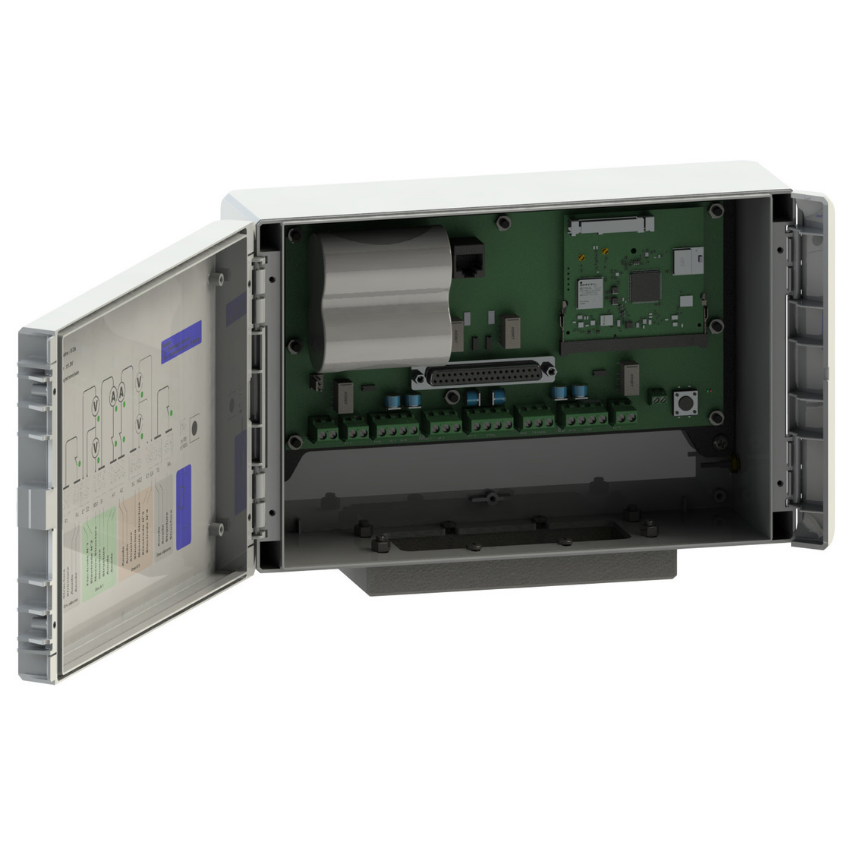

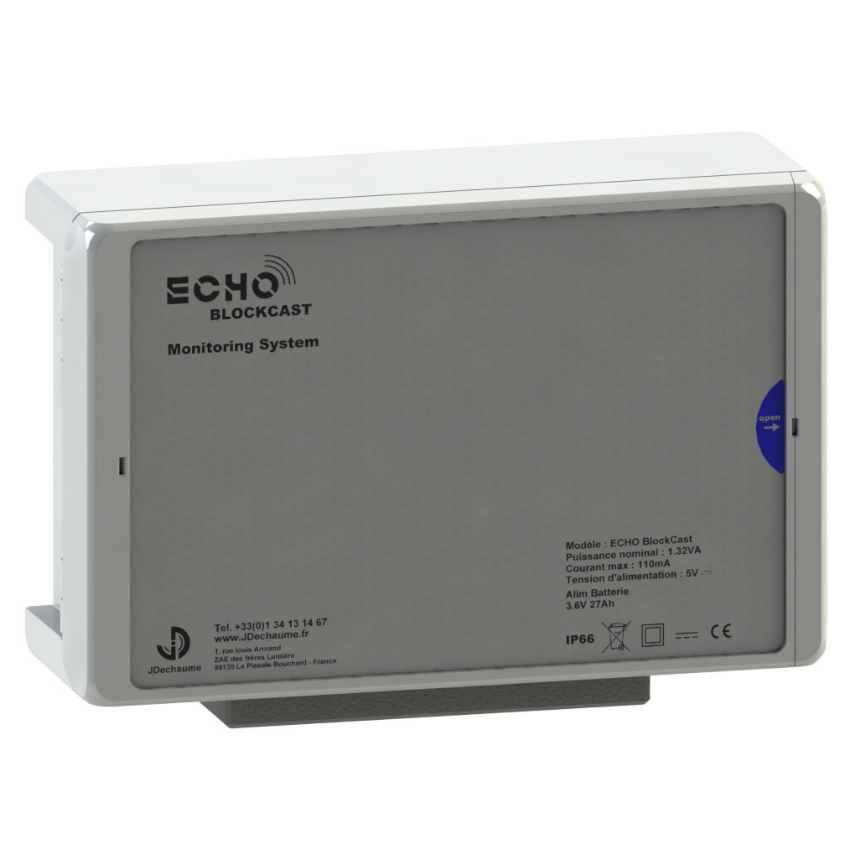

ECHO BlockCast – Telemetry for Concrete Cathodic Protection

Continuous monitoring and optimization of structures

Thanks to daily data transmission, ECHO BlockCast ensures 24/7 monitoring of essential parameters: potential, voltage, current, instant-off potential, and concrete temperature. This continuous monitoring helps optimize the durability of structures and reduce unnecessary on-site interventions.

A simple, autonomous and connected solution

The device operates either on mains power or battery, with a minimum battery life of 3 years. Data is transmitted via the 4G (LTE-M) network to the ECHO hypervision platform, providing secure access to historical data, alerts, and data exports.

Designed for field conditions

Compact, waterproof (IP66), and easy to install, ECHO BlockCast adapts to all environments, even the most constrained. Developed in collaboration with installers, the solution complies with NF EN 12696 standards and can be deployed across multiple zones with fully customizable configuration.

Reliable and sustainable French design

Developed and manufactured in France, ECHO BlockCast benefits from dedicated after-sales service and hotline support. It integrates perfectly into a sustainable and high-performance monitoring strategy for reinforced concrete structures.

Hypervision

The ECHO hypervision platform is specifically designed for monitoring and managing cathodic protection systems. It centralizes data from telemetry equipment and provides clear visualization of installations. This hypervision system facilitates remote monitoring, historical analysis, and optimized field team interventions.
