17 - Connections Crimp Junction Sleeve
Subject
Range of junction sleeves to be crimped designed for jointing low voltage conductors. Made of electrolytic copper tube, connectors are annealed and electrolytically tin plated. They feature an internal taper at both ends to ease the introduction of the conductor and a central stop to ensure correct positioning.
Description

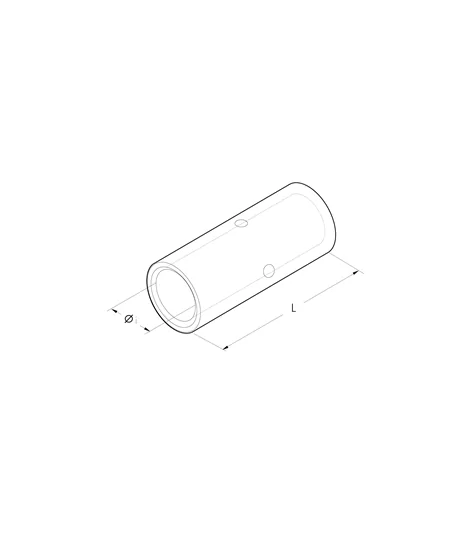

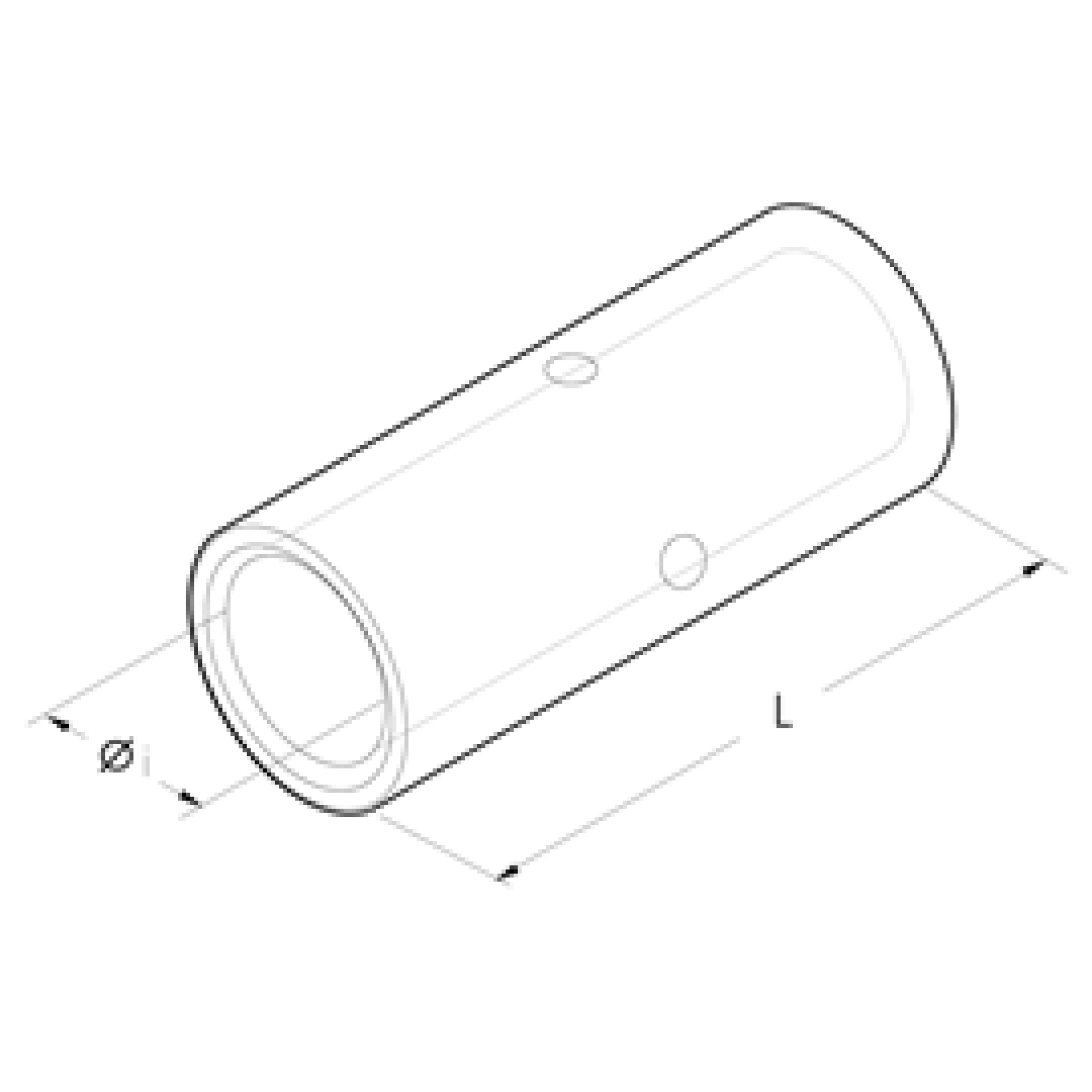

Dimensions
-
Junction 2,5mm² 008-0067 Øint 2,4 L15
-
Junction 4mm² 008-0068 Øint 2,7 L20
-
Junction 6mm² 008-0069 Øint 3,3 L25
-
Junction 10mm² 008-0070 Øint 4,2 L27
-
Junction 16mm² 008-0071 Øint 5,3 L31
-
Junction 25mm² 008-0072 Øint 6,6 L35
-
Junction 35mm² 008-0073 Øint 7,9 L37
-
Junction 70mm² 008-0076 Øint 11,0 L50
-
Junction 95mm² 008-0077 Øint 13,1 L56
