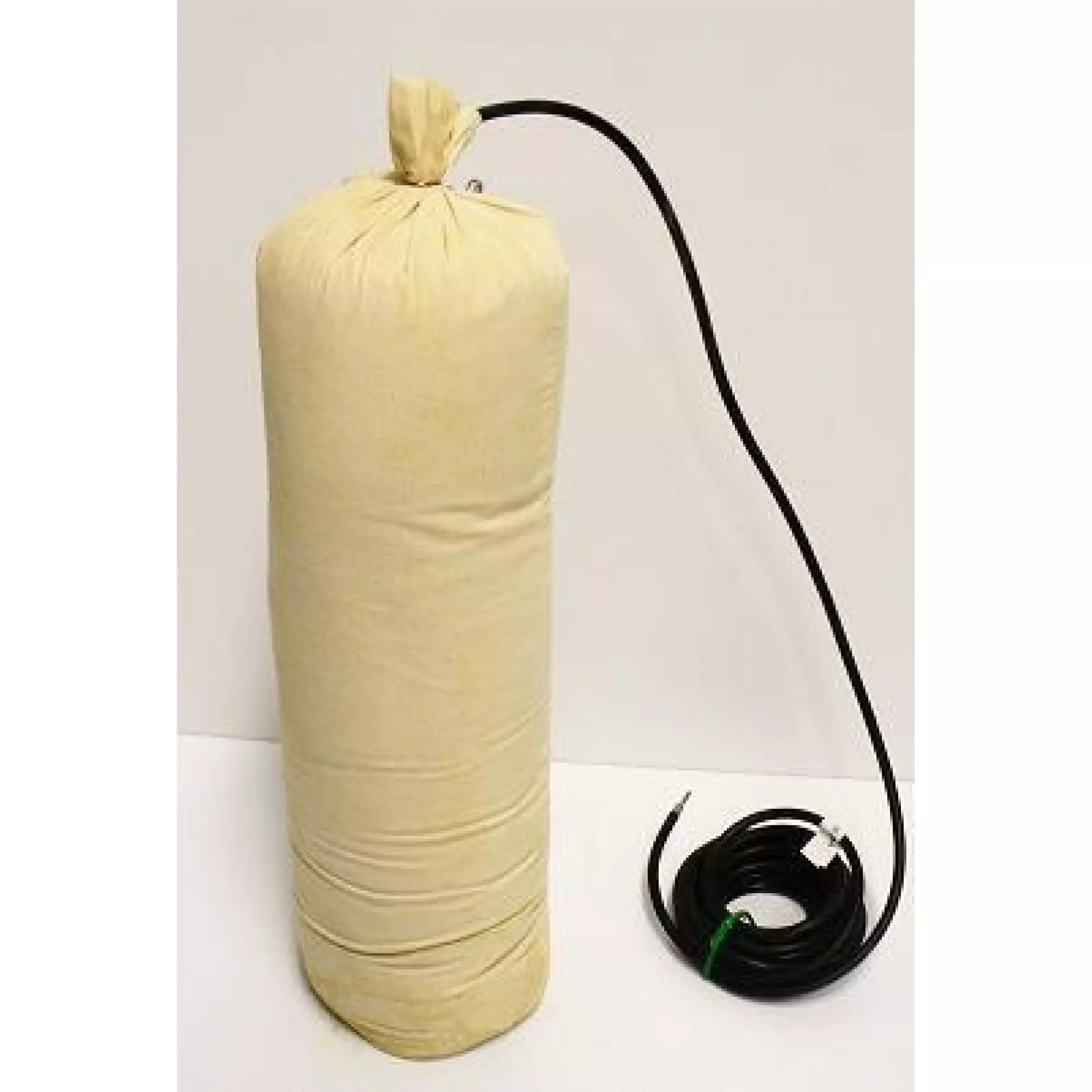

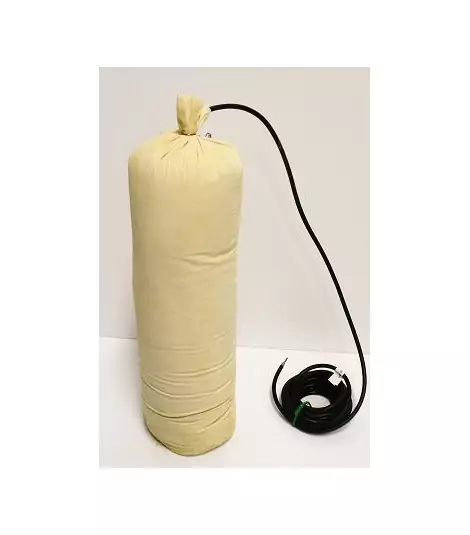

13 - Anodes Anodes Backfill Magnésium

Description

Specifications

DIMENSIONS AND CHARACTERISTICS :

15kg version

Length 800mm Ø 110mm Weight: 15kg

The anode is crossed by a Ø 12mm steel ring to improve mechanical resistance, and to ensure the connection of the electric cable.

Potential in soil: -1.5 V (Cu/CuSO4)

Consumption: 7.1 kg/A.year

REGULATING MIXTURE

The anode is coated with a regulating mixture composed of the following elements:

80% gypsum - 20% bentonite

CABLE AND CONNECTION

The cable used is cathodic protection type PC 10². Standard length 5m.

IDENTIFICATION OF EACH ANODE

Batch no./Manufacturing date/Tested weight

PACKAGING

Each anode is individually packed in a plastic bag to protect it from humidity.

This bag must be removed when the anode is installed.

Delivery organized on site.

AVAILABLE IN 5kg VERSION
